Boiler Flange Under Dry Steatite Ten Compatible with Atlantic \ ROUND MO00030T 1500W D outer=120mm D bulb=50mm L=340mm

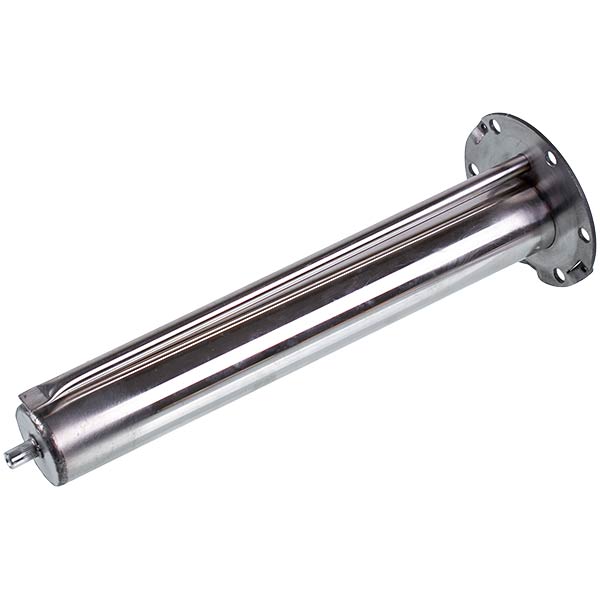

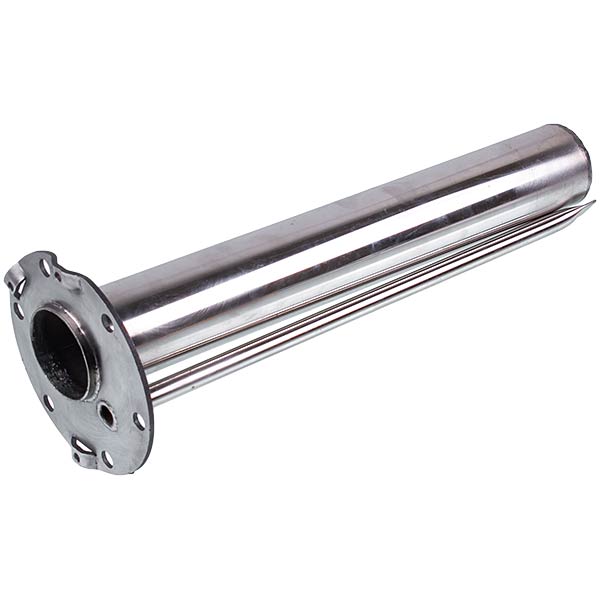

Atlantic \ ROUND МО00030Т Boiler Flange Under Dry Steatite Ten.

Under a heating element with a capacity of 1500W.

Flange-flask is installed in water heaters with dry heating elements (vertical and horizontal models): Atlantic Steatite, Thermor, Aston, Delfa.

Material: stainless steel.

Flange length: 340mm.

Flange diameter (outer): 120mm.

Flask diameter: 50mm.

Pipe thickness: 1.5mm.

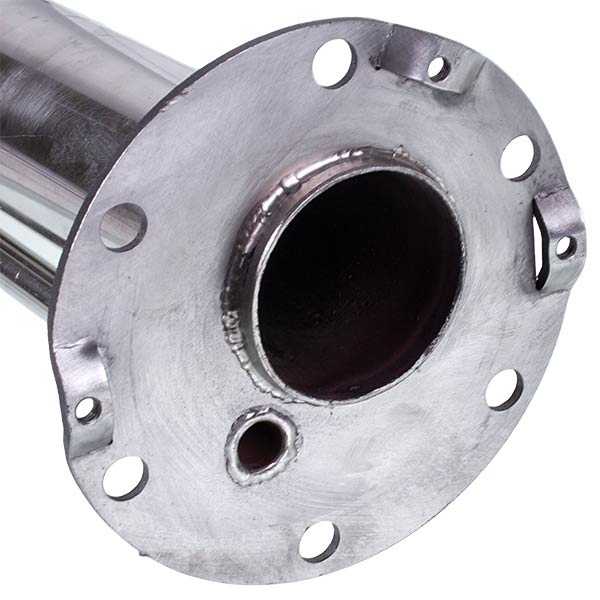

The flange has 6 holes for mounting bolts.

In the upper part of the flange-flange there are two tubes: the first is a place for a magnesium anode with an internal thread M8; the second - under the thermostat (thermostat).

Suitable for such boiler models:

Atlantic Steatite Elite VM 050 D400-2-BC,

Atlantic Steatite Elite VM 080 D400-2-BC,

Atlantic Steatite Elite VM 100 D400-2-BC,

Thermor Steatite Elite VM 050 D400-2-BC,

Thermor Steatite Elite VM 080 D400-2-BC,

Thermor Steatite Elite VM 100 D400-2-BC,

VM 30 S3C,

VM 30 D325-2-BC,

Atlantic Steatite Cube Slim VM 30 S3 C 1500W,

Atlantic Steatite Cube Slim VM 50 S3 C 1500W,

Atlantic Steatite Cube VM 75 S4 C 1500W,

Atlantic Steatite Cube VM 100 S4 C 1500W,

Atlantic Steatite Cube VM 150 S4 C 1500W.

Compatible Brand : Atlantic, Delfa, Round, Aston, Thermex, Thermor

Manufacturer :

Type of spare part : Flange

Flask diameter, mm : 50

Diameter, mm : 120

Length, mm : 340

For boiler power, W : 1500

Material : Stainless steel

Anode thread : M8

Fastening type : 6 holes
