Vacuum Pump LEETO XZ-1A (1 stage./50 lit/min.)

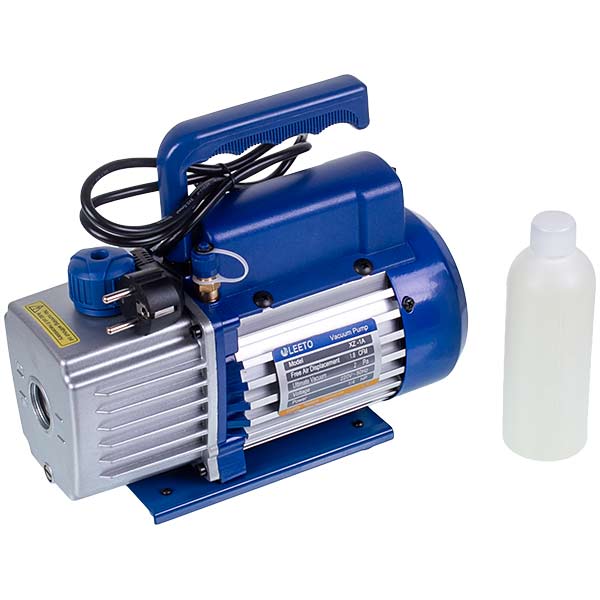

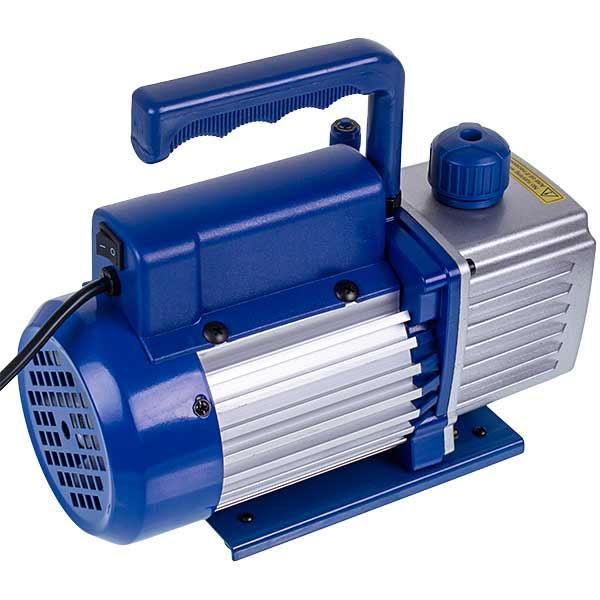

Vacuum Pump LEETO XZ-1А.

The single-stage vacuum pump is designed for vacuuming refrigerant lines in cooling and air conditioning systems. It is made of an aluminum housing (which dissipates heat well) as a single unit without a reducer (for greater compactness and reduced weight), with an elastic coupling between moving parts (for low noise and vibration). It has a forced oil feed system. It has a protection feature that prevents oil from flowing back into the circuit. The pump has a good starting torque, allowing it to be used at low temperatures and low voltage. The oil reservoir is separated from the main part of the pump.

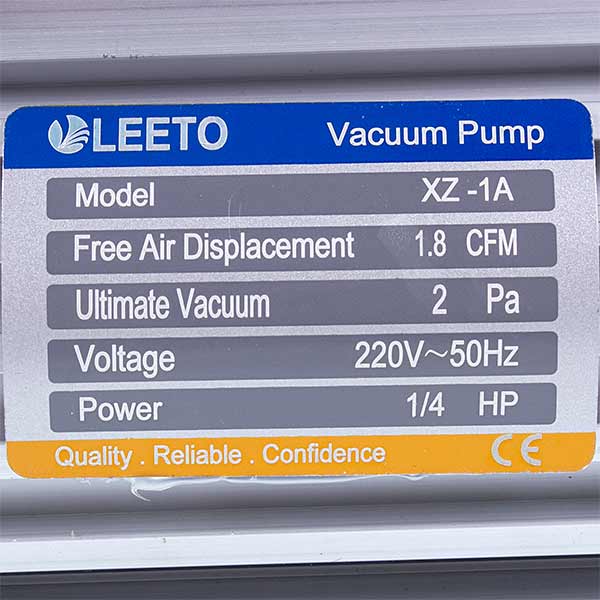

Voltage: 220V-50Hz

110V-60Hz.

Flow Rate: 50L/min (1.8CFM)

56L/min (2.0CFM).

Ultimate Vacuum: 150micron (2Pa).

Motor: 1/4HP (180W).

Oil Capacity: 200ml.

Dimensions: 270x120x225mm.

Weight: 5.2kg.

Inlet Port: 1/4"SAE.

Number of Stages: 1.

Compatible Brand : LEETO, VALUE

Manufacturer : LEETO

Brands for customs : LEETO

Vacuum, µ : 150

Net weight, kg : 5.2

Number of steps : 1

Power, HP : 1/4

Oil volume, ml : 200

Connecting thread : 1/4 SAE

Productivity, l/min : 50

Manufacturer for customs : LEETO

Dimensions, mm : 270x120x225

Product type : Spare part
