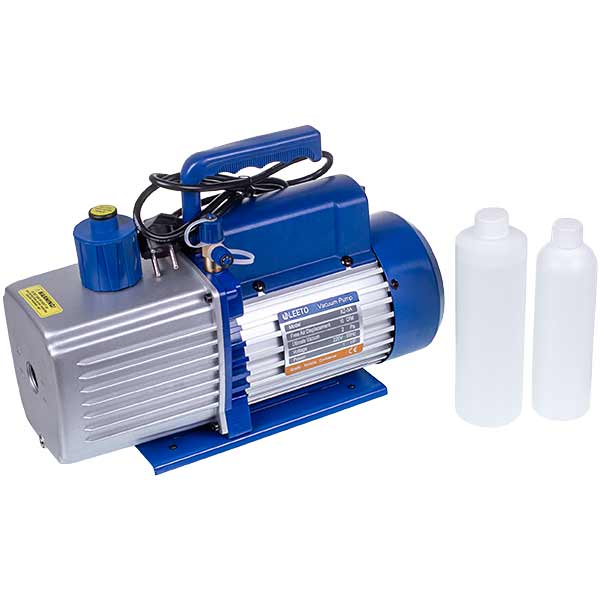

Vacuum Pump LEETO XZ-5A (1 stage./283 lit/min.)

Vacuum Pump LEETO XZ-5A.

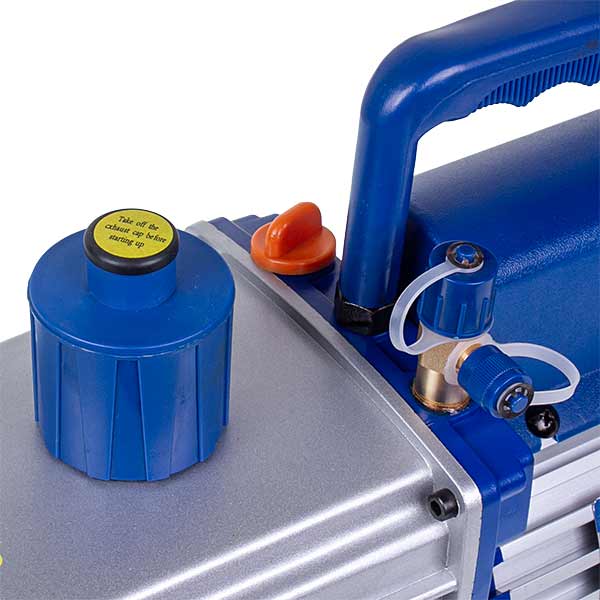

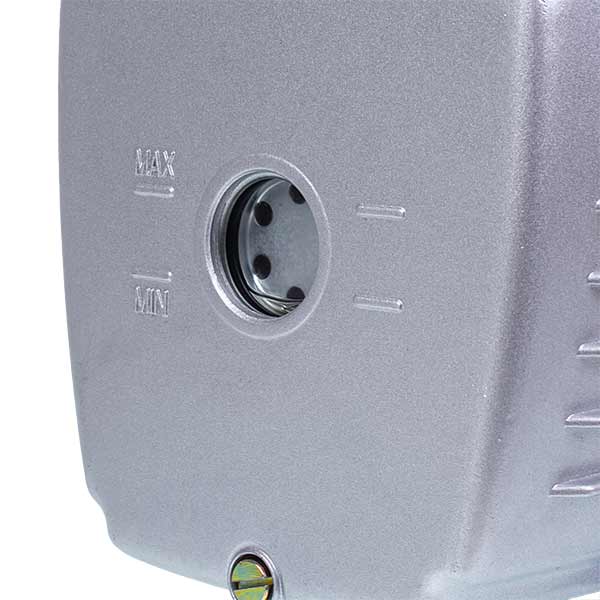

The single-stage vacuum pump is designed for vacuuming refrigerant lines in cooling and air conditioning systems. It is made of an aluminum housing (which dissipates heat well) as a single unit without a reducer (for greater compactness and reduced weight), with an elastic coupling between moving parts (for low noise and vibration). It has a forced oil feed system. It has a protection feature that prevents oil from flowing back into the circuit. The pump has a good starting torque, allowing it to be used at low temperatures and low voltage. The oil reservoir is separated from the main part of the pump.

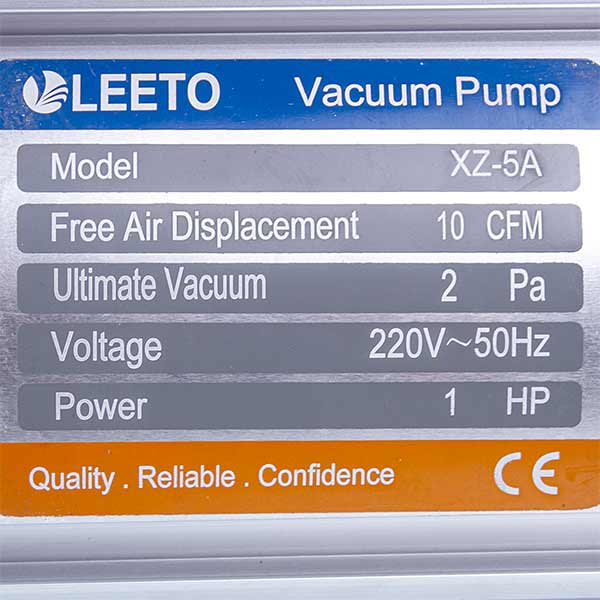

Voltage: 220V-50Hz

110V-60Hz.

Flow Rate: 283L/min (10CFM)

340L/min (12CFM).

Ultimate Vacuum: 150micron (2Pa).

Motor: 1HP (750W).

Oil Capacity: 950ml.

Dimensions: 390x148x265mm.

Weight: 14.5kg.

Inlet Port: 1/4&3/8"SAE.

Number of Stages: 1.

Compatible Brand : LEETO

Manufacturer : LEETO

Brands for customs : LEETO

Vacuum, µ : 150

Net weight, kg : 14.5

Number of steps : 1

Power, HP : 1

Oil volume, ml : 950

Connecting thread : 1/4&3/8"SAE

Productivity, l/min : 283

Manufacturer for customs : LEETO

Dimensions, mm : 390x148x265

Product type : Spare part
