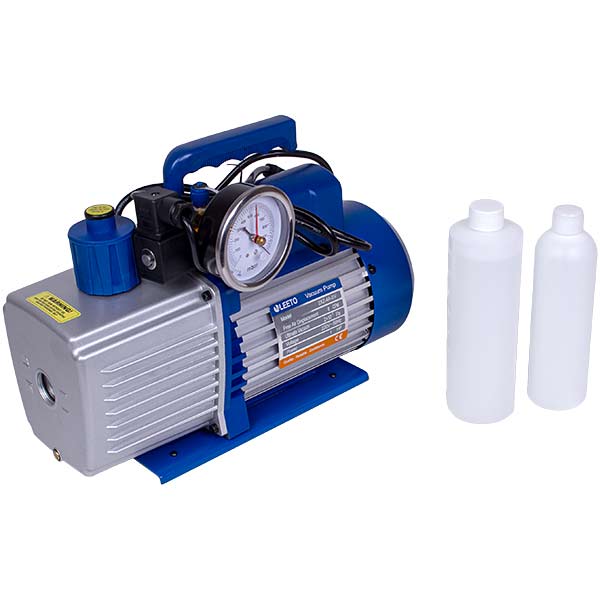

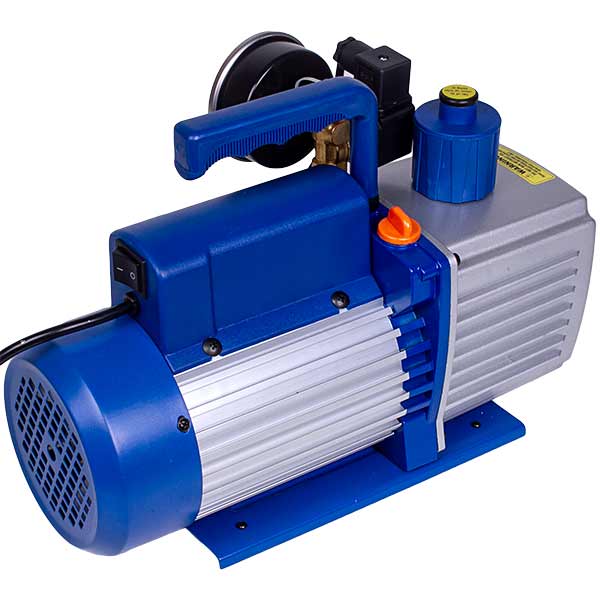

Air Conditioner Vacuum pump With Pressure Gauge LEETO 2XZ-4A-SV (2 stage./226 lit/min.)

Air Conditioner Vacuum pump With Pressure Gauge LEETO 2XZ-4А-SV.

The two-stage vacuum pump is designed for vacuuming refrigerant lines in cooling and air conditioning systems. It is made of an aluminum housing (which dissipates heat well) as a single unit without a reducer (for greater compactness and reduced weight), with an elastic coupling between moving parts (for low noise and vibration).

It has a forced oil feed system. It has a protection feature that prevents oil from flowing back into the circuit. The pump has a good starting torque, allowing it to be used at low temperatures and low voltage. The oil reservoir is separated from the main part of the pump.

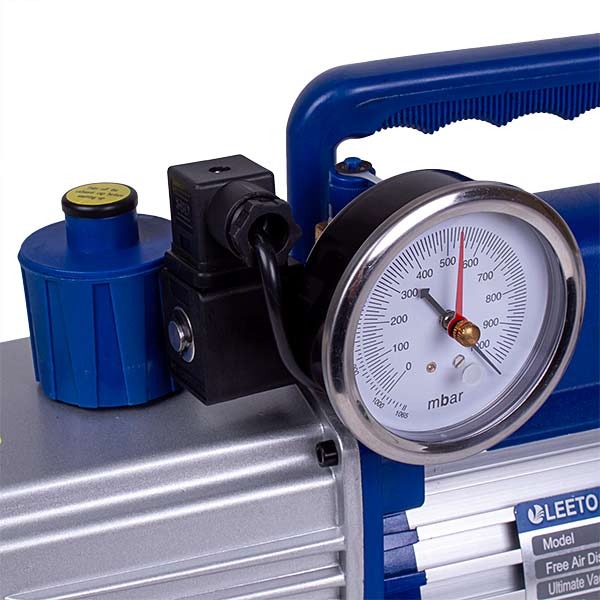

It is equipped with a pressure gauge and allows you to monitor the vacuum level in the system. The pressure gauge can also be used to detect leaks in the system, which can lead to a deterioration in its performance.

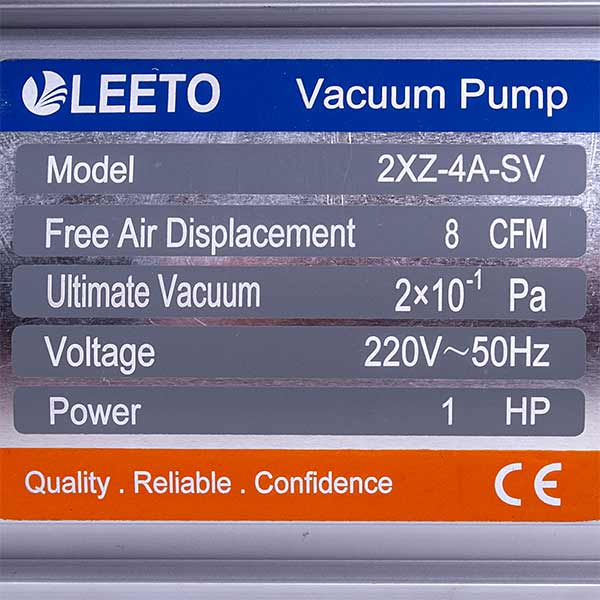

Voltage: 220V-50Hz.

Flow Rate: 226L/min (8.0CFM).

Ultimate Vacuum: 15micron.

Motor: 1HP (750W).

Oil Capacity: 650ml.

Dimensions: 370x148x265mm.

Weight: 15kg.

Inlet Port: 1/4"SAE, 3/8"SAE.

Number of Stages: 2.

Supplied with pressure gauge.

Compatible Brand : Ice Loong, LEETO, VALUE

Manufacturer : LEETO

Brands for customs : LEETO

Vacuum, µ : 15

Net weight, kg : 15

Number of steps : 2

Power, HP : 1

Oil volume, ml : 650

Connecting thread : 1/4&3/8"SAE

Productivity, l/min : 226

Manufacturer for customs : LEETO

Dimensions, mm : 370x148x265
