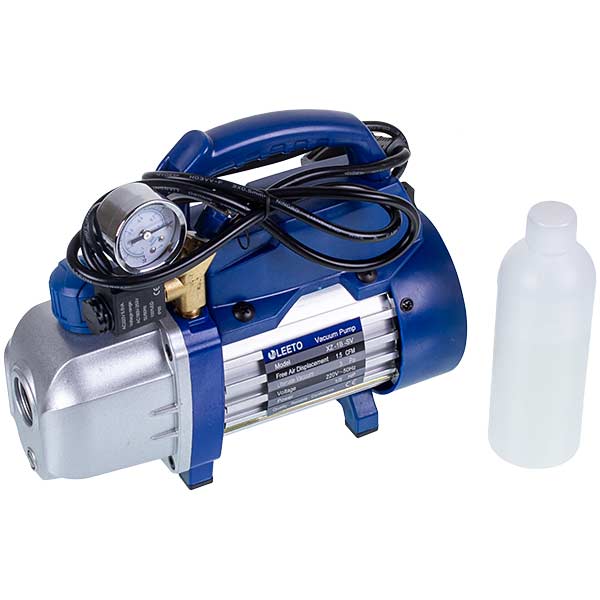

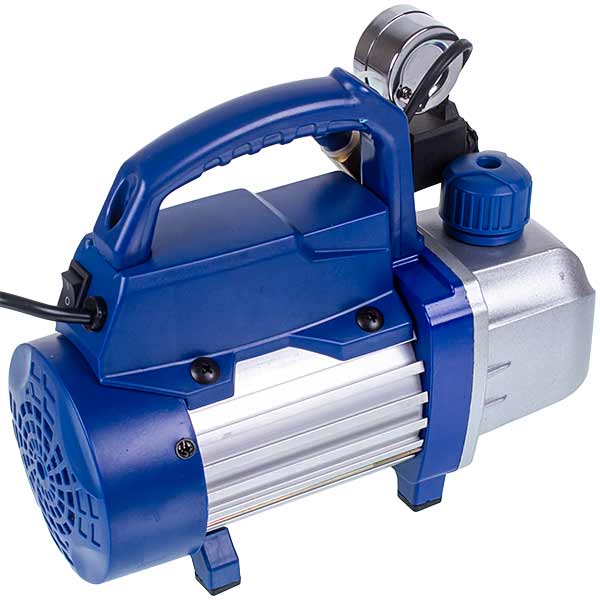

Vacuum pump With Pressure Gauge LEETO XZ-1B-SV (1 stage./42 lit/min.)

Vacuum Pump LEETO LEETO XZ-1B-SV.

The single-stage vacuum pump is designed for vacuuming refrigerant lines in cooling and air conditioning systems. It is made of an aluminum housing (which dissipates heat well) as a single unit without a reducer (for greater compactness and reduced weight), with an elastic coupling between moving parts (for low noise and vibration).

It has a forced oil feed system.

It has a protection feature that prevents oil from flowing back into the circuit.

The pump has a good starting torque, allowing it to be used at low temperatures and low voltage.

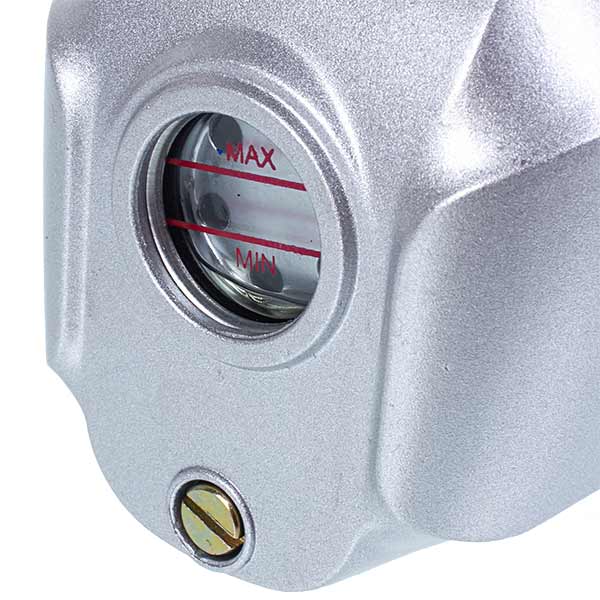

The oil reservoir is separated from the main part of the pump.

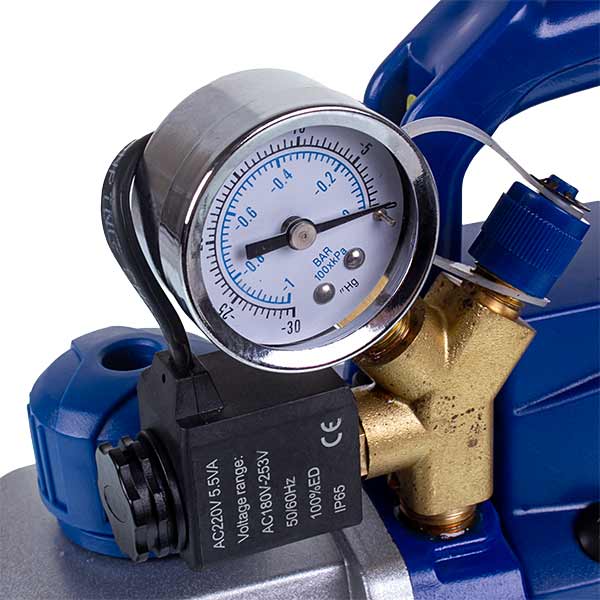

It is equipped with a pressure gauge and allows you to monitor the vacuum level in the system. The pressure gauge can also be used to detect leaks in the system, which can lead to a deterioration in its performance.

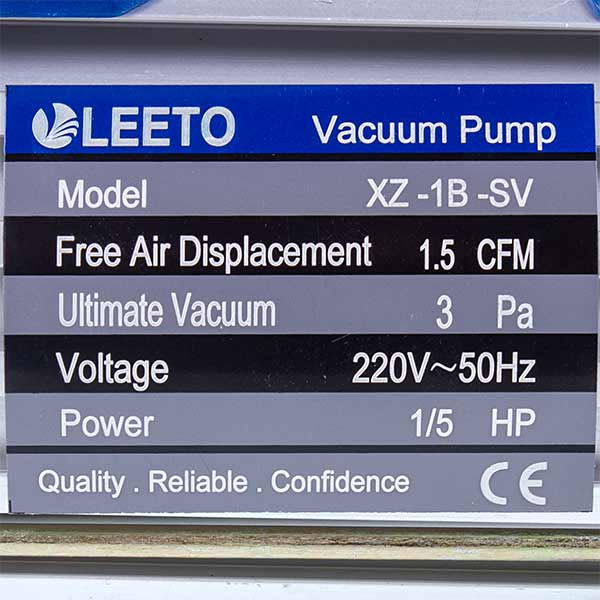

Voltage: 220V-50Hz.

Flow Rate: 42L/min (1.5CFM).

Ultimate Vacuum: 150micron (2Pa).

Motor: 1/5HP (150W).

Oil Capacity: 160ml.

Dimensions: 255x105x205mm.

Weight: 4.4kg.

Inlet Port: 1/4"SAE.

Number of Stages: 1.

Supplied with pressure gauge.

Compatible Brand : LEETO, Mastercool, VALUE

Manufacturer : LEETO

Brands for customs : LEETO

Vacuum, µ : 150

Net weight, kg : 4.4

Number of steps : 1

Power, HP : 1/5

Oil volume, ml : 160

Connecting thread : 1/4 SAE

Productivity, l/min : 42

Manufacturer for customs : LEETO

Dimensions, mm : 255x105x205

Product type : Spare part
