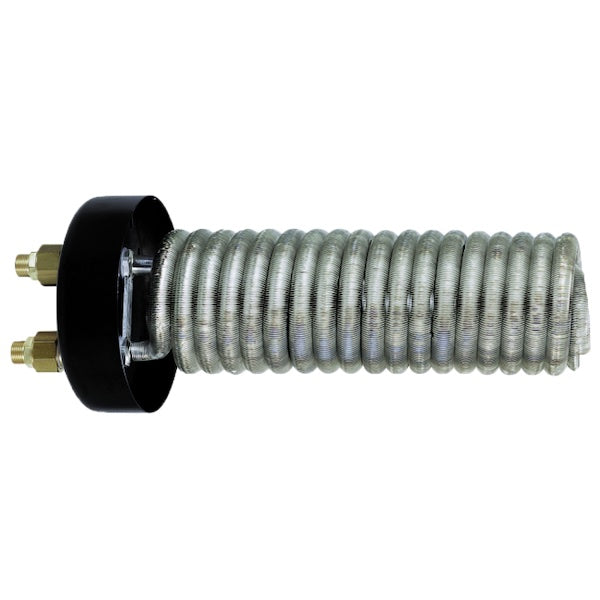

The electric heating element (TEN) for the Drazice 100641150 RWT 1-110D boiler is a ribbed, tubular element.
It is designed to be installed in a flange opening with a diameter of Ø150 mm as the main heating element for Drazice OKCE 400-500 S/10 Bar storage water heaters.
It is also designed to be installed in a flange opening with a diameter of Ø150 mm as an additional heating element for Drazice OKC 300-500 NTR/10 Bar and OKC 300-500 NTRR/10 Bar storage water heaters.
For installation in Drazice OKCE 750-1000 S/10 Bar, OKC 750-1000 NTR/10 Bar, OKC 750-1000 NTRR/10 Bar storage water heaters, it requires a reducing (transition) flange of size 225/150 to be installed in a flange opening with a diameter of Ø225 mm.
It can also be installed in a flange opening with a diameter of Ø150 mm or Ø225 mm in storage water heaters from other manufacturers that allow the installation of additional heating elements with such flange connections.
The power of the heat exchanger depends on the parameters of the heat transfer medium flowing through it.
Compatible Brand : Drazice
Manufacturer : Drazice
Type of heating element : open ("wet")
The presence of an anode nest : No
The presence of a tube for the sensor : yes
Fastening type : On the flange
Product type : Spare part
Heating element with thermostat : no
The shape of the heating element : tubular
Manufacturer for customs : Drazice
Brands for customs : Drazice
