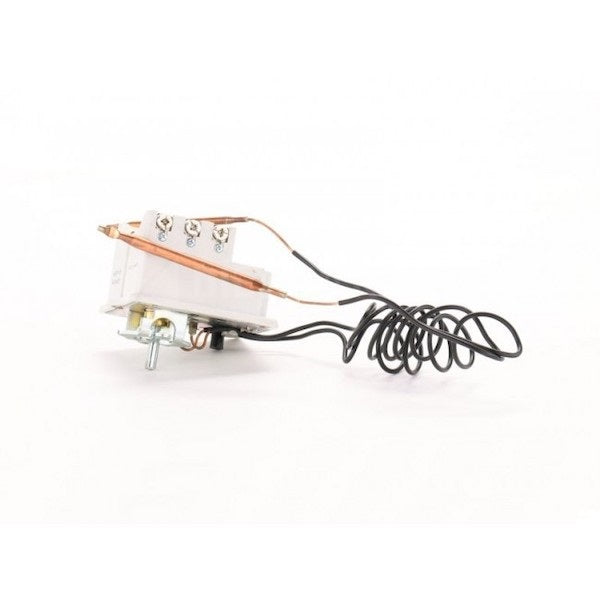

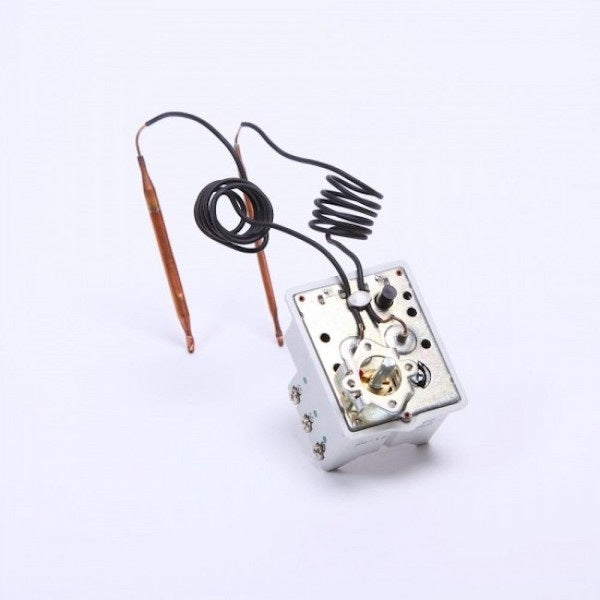

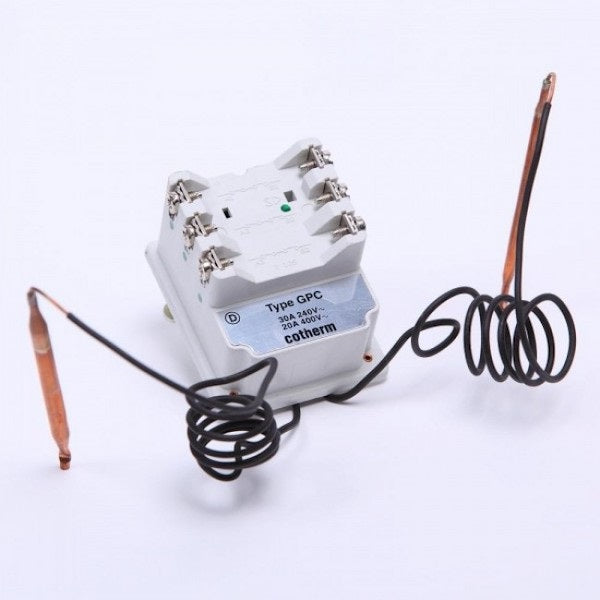

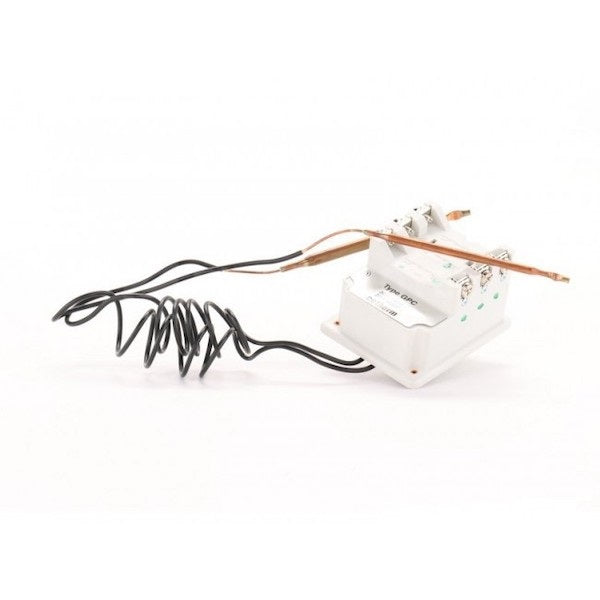

Boiler Thermostat Drazice 6405615 Cotherm GPC Pro TPK 20A 400V, 2 capillaries L=800/800mm, 7-77°C

Boiler Thermostat Drazice 6405615 GPC Pro.

Thermostat is a type of RAC thermostat produced by Drazice, specifically designed for use in industrial electric water heaters with a capacity ranging from 200 to 300 liters. It operates as a three-phase (three-pole) combined device.

The main function of this thermostat is two-stage load control and protection. On the first stage, it maintains the set water temperature, and on the second stage, in case of malfunction or failure of the temperature regulator, it automatically shuts off the load, ensuring system safety. The protection is triggered at a temperature of 95±3 degrees Celsius, leading to a protective (emergency) disconnection of the electrical circuit.

Voltage: 400V.

Current: 20A.

Equipped with 2 capillaries.

Regulation range: 7...77±5°C.

Length of the regulating capillary: 800±5mm.

Length of the protective capillary: 800±5mm.

Power supply and load (heating element) connection: screw terminals.

Capillary material: copper.

Length of the regulating probe: 95±5mm.

Length of the protective probe: 95±5mm.

Probe diameter: 6.2mm.

Maximum housing temperature: 125°C.

Differential: ~9°C.

Dimensions: 50x75x65mm (excluding the handle).

Weight: ~250 grams.

Compatible Brand : COTHERM

Manufacturer : COTHERM

Type of spare part : Thermostat

Capillary tube length, mm : 800

Voltage, V : 400

Current strength, A : 20

Temperature : 7-77 °C

Product type : Spare part

Manufacturer for customs : COTHERM

Brands for customs : COTHERM
