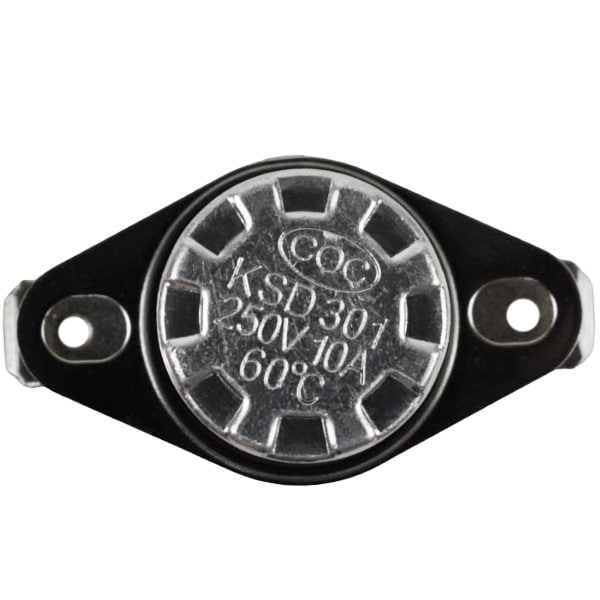

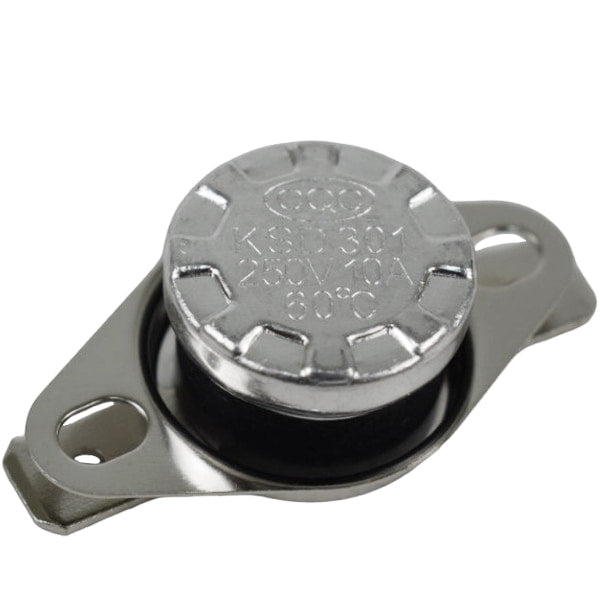

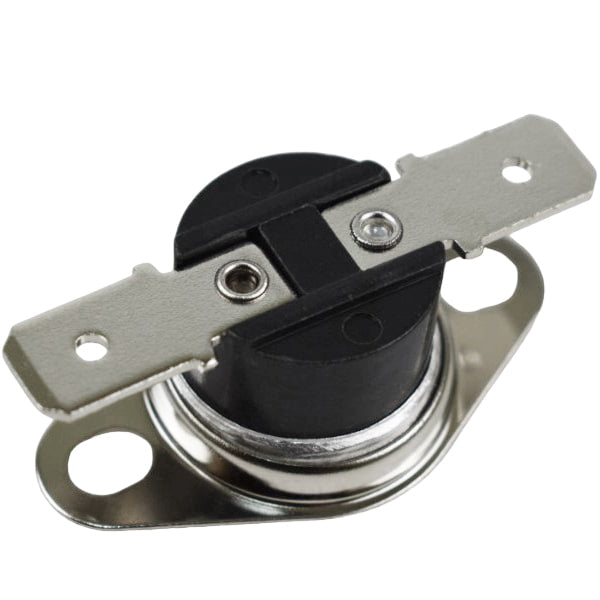

Boiler Thermostat KSD301 60°C 10A 250V (normally closed)

Boiler Thermostat KSD301.

Nominal voltage: 250 V.

Allowable deviation of tripping temperature: ±5%, ±10%.

Reset type: automatic.

Contact resistance, not more than: 50 mΩ.

Insulation resistance, not less than: 100 MΩ at 500 VDC.

Dielectric strength, not less than: 1200 VAC (1 min.), 1800 VAC (1 s).

Operating cycles: 100,000 cycles.

Body diameter: Ø16 mm.

Mounting flange: movable.

Distance between mounting holes: 22-27 mm.

Terminals: 6.3x0.8 mm.

Weight: 4.5 g.

Nominal tripping temperature, °C: 60.

Contact type: normally closed (NC).

Manufacturer :

Type of spare part : Thermostat

Voltage, V : 250

Current strength, A : 10

Temperature : 60 °С
