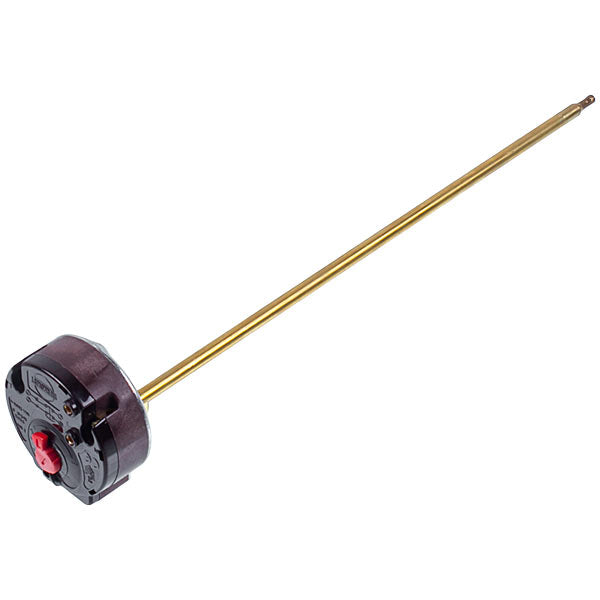

Thermostat (thermal regulator) for a boiler (water heater) Thermowatt RTS 3.
Designed for regulating the temperature of water and similar consistency heat carriers.
Rod thermostats operate based on the principle of thermal linear expansion of the rod, which affects the switch, opening the electrical circuit in the thermostat head. When the temperature exceeds permissible limits, the thermostat activates its patented dual safety system. This system is based on controlling both the rod and the bimetallic plate, ensuring constant interruption of the two-phase electrical circuit. A traditional system based on a bimetallic plate can also be used to ensure constant interruption of the two phases. Manual intervention is required to activate the fuse.

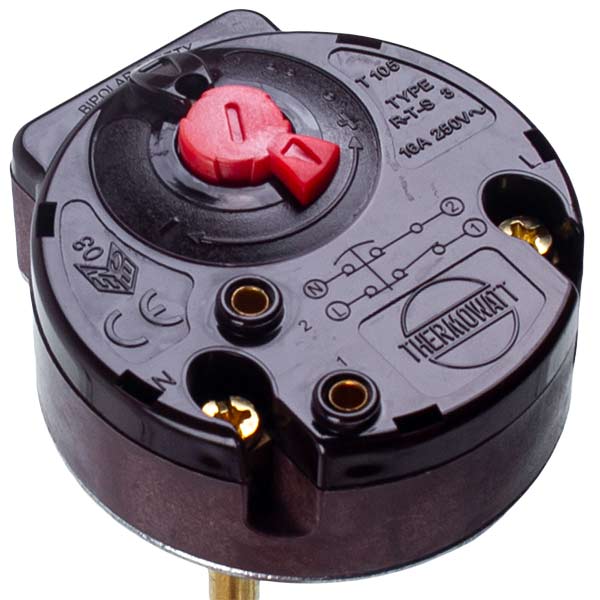

With contacts for connecting a control lamp indicating operation.
Voltage: 250V.
Current strength: 16A.

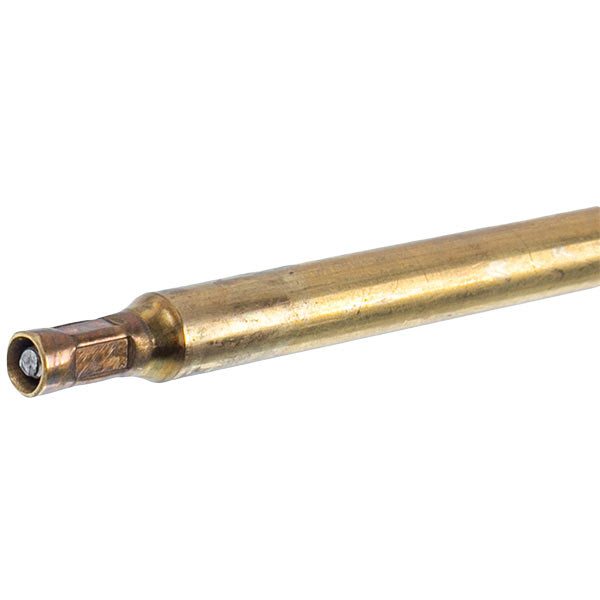

Rod length: 270mm.
Fuse calibration: 90°C.
Maximum thermostat calibration: 78°C.
Compatible Brand : Ariston, Thermowatt, Thermex
Manufacturer : Thermowatt
Type of spare part : Thermostat
Rod length, mm : 270
Fuse calibration : 90°C
Maximum thermostat calibration : 78°C
Voltage, V : 250
Current strength, A : 16
Manufacturer for customs : Thermowatt
Brands for customs : Thermowatt
