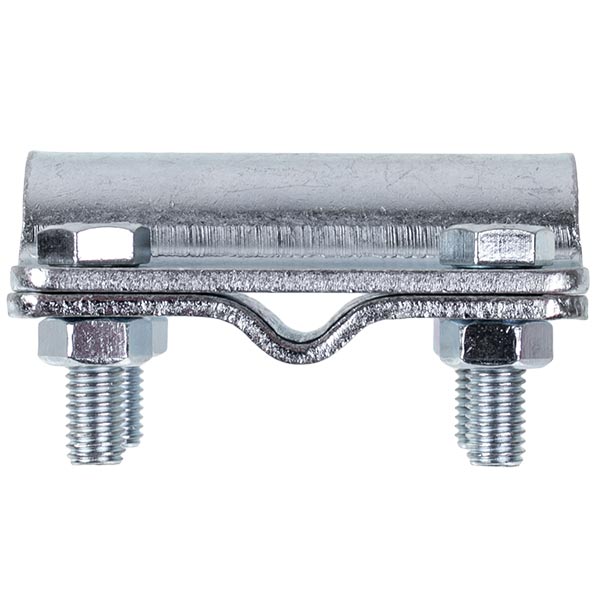

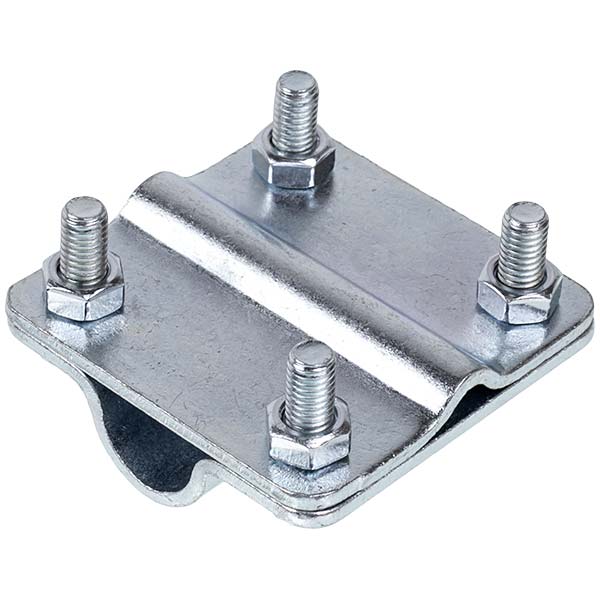

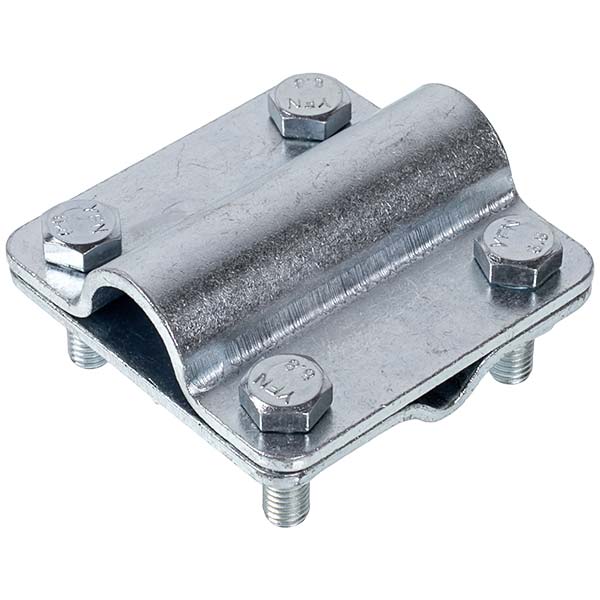

The rod/wire clamp 44/208.2 OS is designed for reliable connection of lightning wire with a diameter of 8 to 10 mm or a strip with a width of up to 40 mm with a rod with a diameter of 16 to 20 mm.
It provides strong and stable fastening due to special design and galvanized galvanization. It consists of one 3 mm thick plate with a bend up to 20 mm diameter and one flat plate with a bend up to 10 mm diameter, on 4 bolts.
Material: steel.
Material: galvanized steel for high corrosion resistance and durability.
Number of plates: 2.

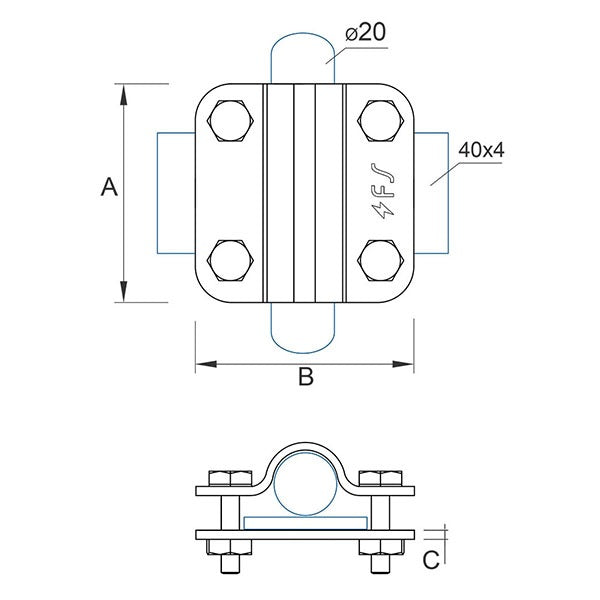

Plate dimensions (АхВ): 72 x 72 mm.
Plate thickness C: 3 mm.
Bar diameter: 16-20 mm.
Wire diameter: 8-10 mm.
Strip width: 40 mm.
Fastening: 4 bolts M8x30.
Allows both longitudinal and cross connections, which makes it a universal tool for mounting. It is possible to make longitudinal or cross connections (A with B):
A) 6 to 10 mm diameter wire, 25x4 mm strip, 30x3 mm strip, 40x4 mm strip.
B) Rod/bar with a diameter of 16 to 20 mm.
Compatible Brand : Універсальні
Type of spare part : Clamp
Diameter, mm : 16-20/8-10
Length, mm : 72
Fastening : bolts M8x30
Material : Galvanised steel
Coating : Galvanized
Thickness, mm : 3
Width, mm : 72
