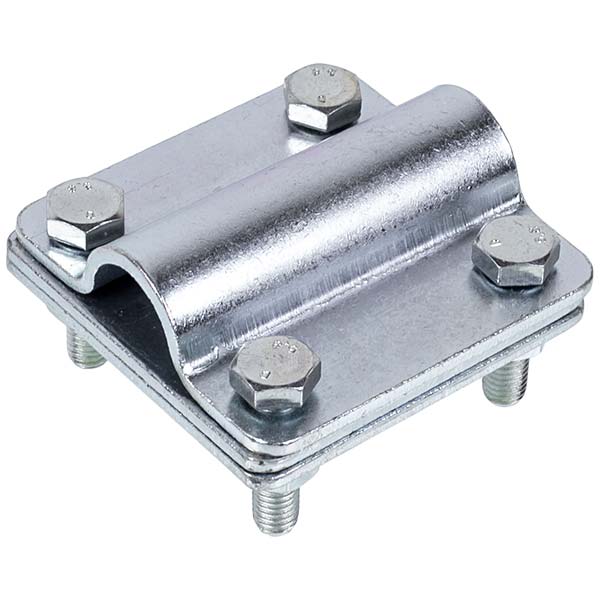

Clamping bar D=16-20mm/strip 40mm galvanized steel 44/20.3 OS

The rod/strip clamp 44/20.3 OS is designed for reliable connection of a lightning bar up to 40 mm wide with a rod with a diameter of 16-20 mm.

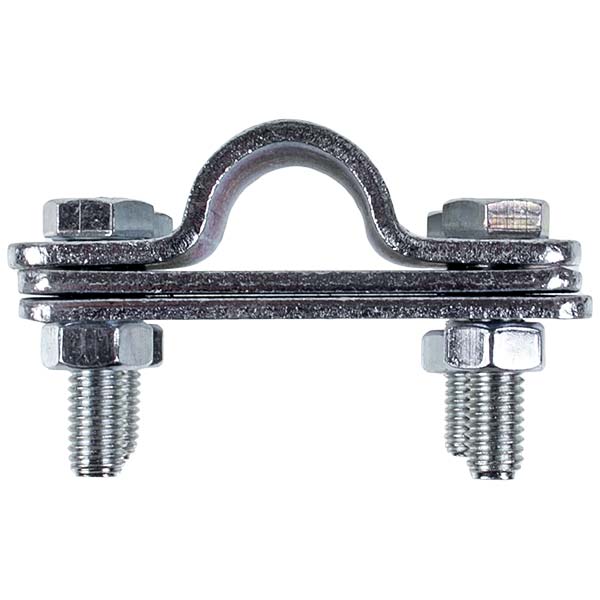

It provides strong and stable fastening due to its special design and galvanized galvanization. It consists of one plate with a bend for a diameter of up to 20 mm and two flat plates with galvanized galvanizing for corrosion protection for 4 bolts.

Material: steel.

Coating: galvanized.

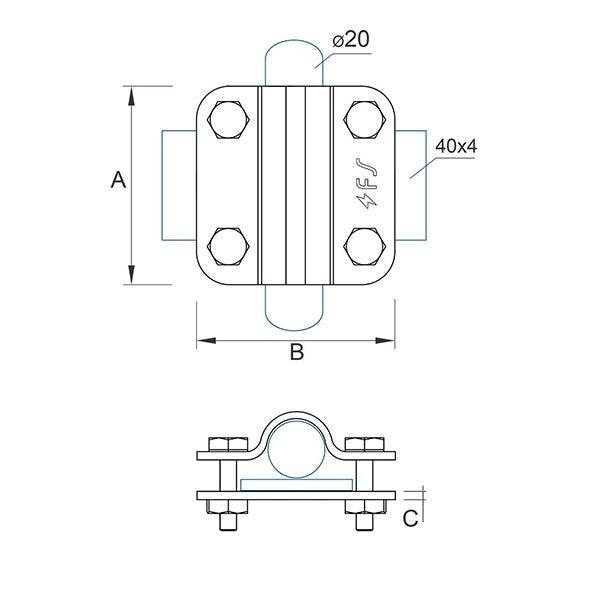

Plate dimensions (AхV): 72 x 72 mm.

Number of plates: 3.

Plate thickness C: 3 mm.

Bar diameter: 16-20 mm.

Bar width: 40 mm.

Fastening: 4 bolts M8x30.

Allows both longitudinal and cross connections, which makes it a universal tool for mounting. It is possible to make longitudinal or cross connections (A with B):

A) 25x4 mm strip, 30x3 mm strip, 40x4 mm strip.

B) Rod/bar with a diameter of 16-20 mm.

Compatible Brand : Універсальні

Manufacturer : Universal

Type of spare part : Clamp

Diameter, mm : 16-20

Length, mm : 72

Fastening : bolts M8x30

Material : Galvanised steel

Coating : Galvanized

Thickness, mm : 3

Width, mm : 72
