Clamping rod D=16mm/strip/wire D=8-10mm steel galvanized 04/168.3 OC

Clamp rod/strip/wire galvanized steel clamp 04/168.3 OC.

It is designed for reliable connection of lightning-receiving wire with diameter from 8 to 10 mm (galvanized or aluminum) or strip with width up to 30 mm with a rod with diameter 16 mm. It provides strong and stable fastening due to its special design and galvanized galvanization.

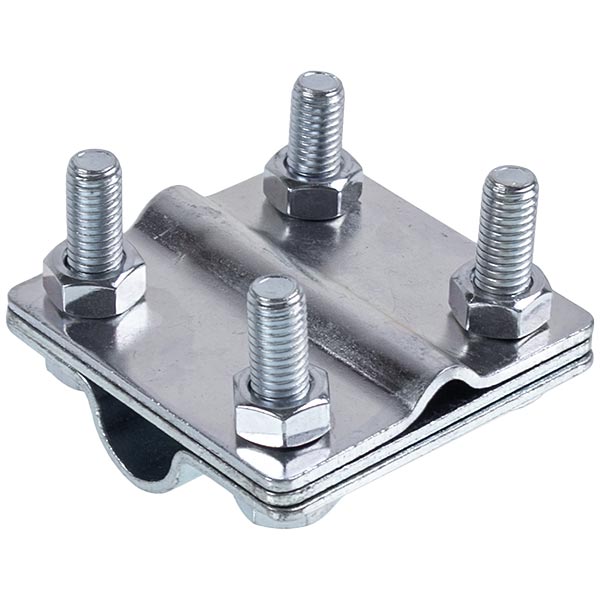

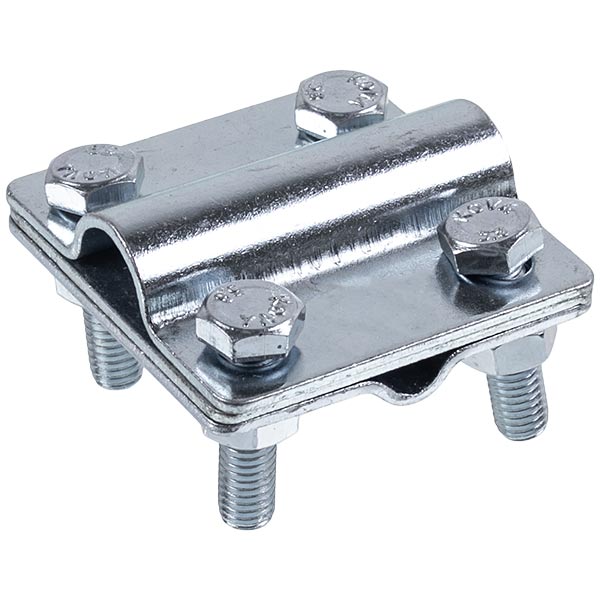

It consists of one plate with a bend for 16 mm diameter, one for 8 mm diameter and one flat plate with a thickness of 2 mm, which ensures a secure fixing.

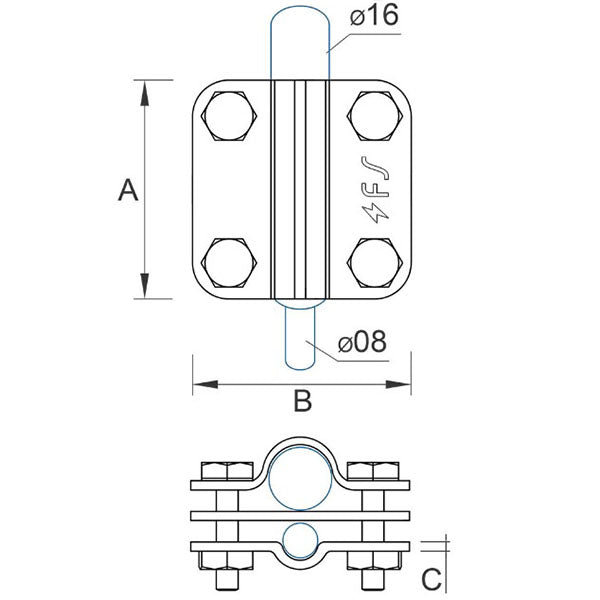

Plate thickness (C): 2 mm.

Plate dimensions (АхВ): 60 x 60 mm.

Fixing: 4 bolts M8x30.

Material: galvanized steel for high corrosion resistance and durability.

Allows for both longitudinal and cross connections, making it a universal tool for mounting. Longitudinal or cross connections (A with B) are possible:

A) 6 to 10 mm diameter wire, 25x4 mm strip, 30x3 mm strip.

B) Rod/bar with a diameter of 14 to 16 mm.

Compatible Brand : Універсальні

Manufacturer : Universal

Type of spare part : Clamp

Diameter, mm : 16/8-10

Length, mm : 60

Fastening : bolts M8x30

Material : Galvanised steel

Coating : Galvanized

Thickness, mm : 2

Width, mm : 60
