Clamping strip 40mm/wire D=8-10mm steel galvanized 44/8.2 OC

Strip/wire clamp galvanized steel galvanized 44/8.2 OC.

Designed for reliable connection of lightning-receiving wire with a diameter of 8 to 10 mm (galvanized or aluminum) and strip with a width of up to 40 mm. The clamp provides strong and stable fastening due to its special design.

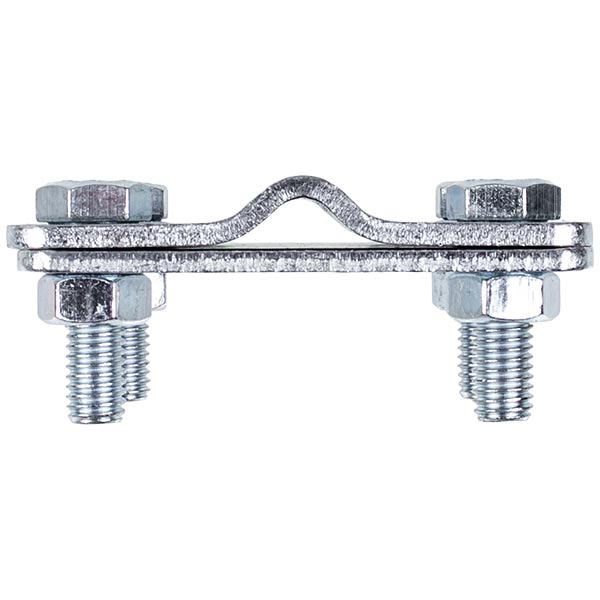

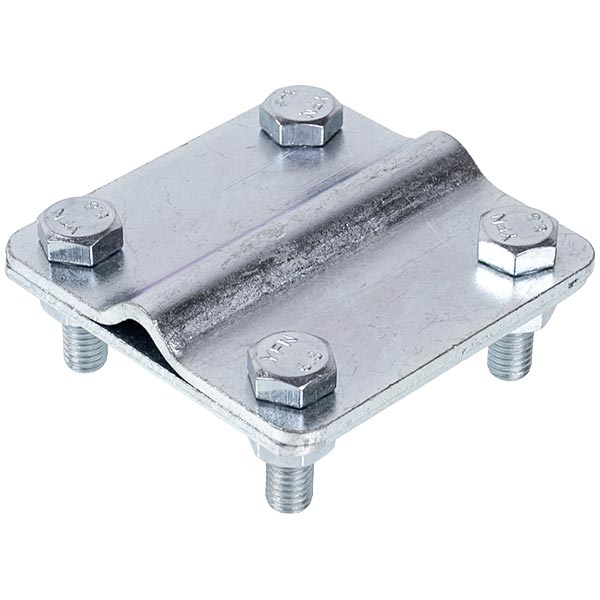

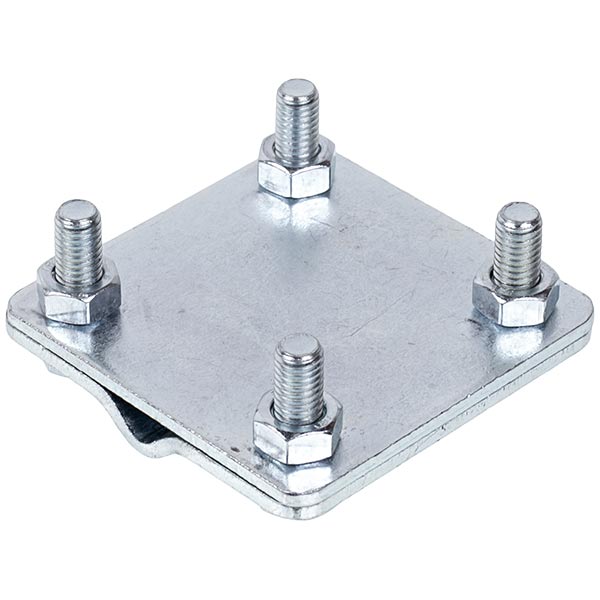

The clamp consists of one plate with a bend for a diameter of 8-10 mm and one flat plate, which ensures secure fastening.

Number of plates: 2.

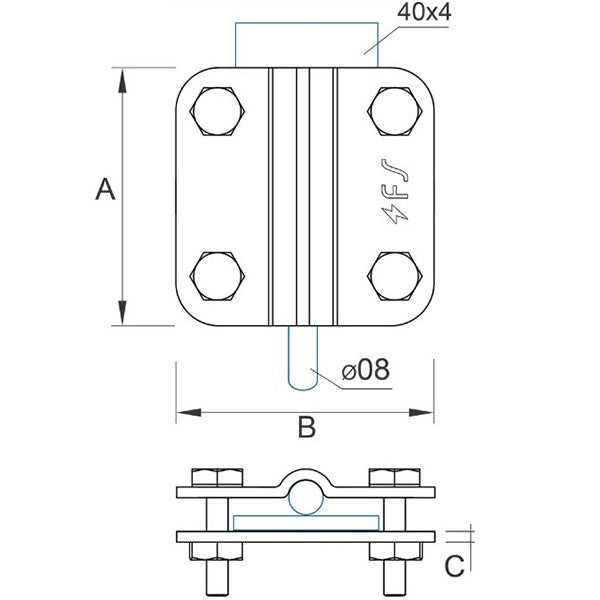

Plate thickness (C): 2.5 mm.

Plate dimensions (AxB): 72 x 72 mm.

Fastening: 4 bolts M8x30.

Material: galvanized steel for high corrosion resistance and durability.

Allows both longitudinal and cross connections, making it a universal tool for mounting. The following connections can be made (A with B):

A) wire with a diameter of 6 to 10 mm;

B) strip 40x4 mm, strip 25x4 mm, strip 30x3 mm.

Compatible Brand : Універсальні

Manufacturer : Universal

Type of spare part : Clamp

Diameter, mm : 8-10

Length, mm : 72

Fastening : bolts M8x30

Material : Galvanised steel

Coating : Galvanized

Thickness, mm : 2.5

Width, mm : 72
