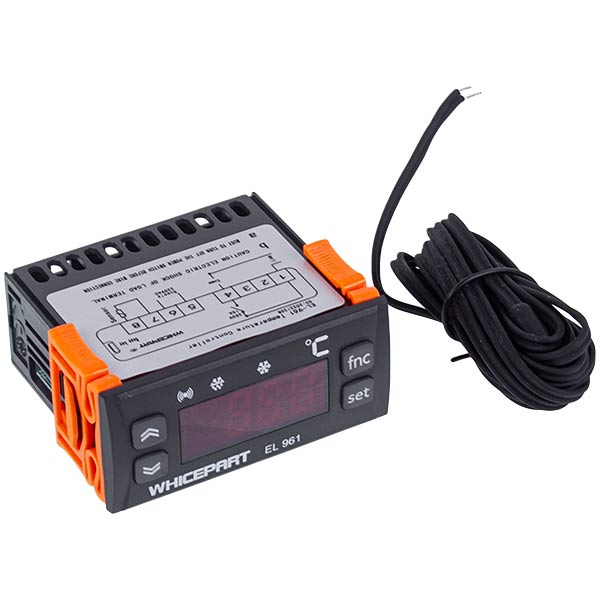

Controller Whicepart EL-961 (Microprocessor 1-Sensor) 220V 10A

Controller Whicepart EL-961 (Microprocessor 1-Sensor).

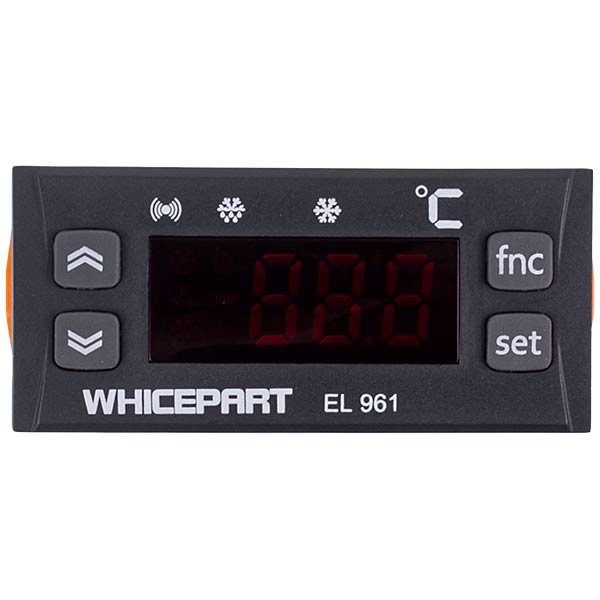

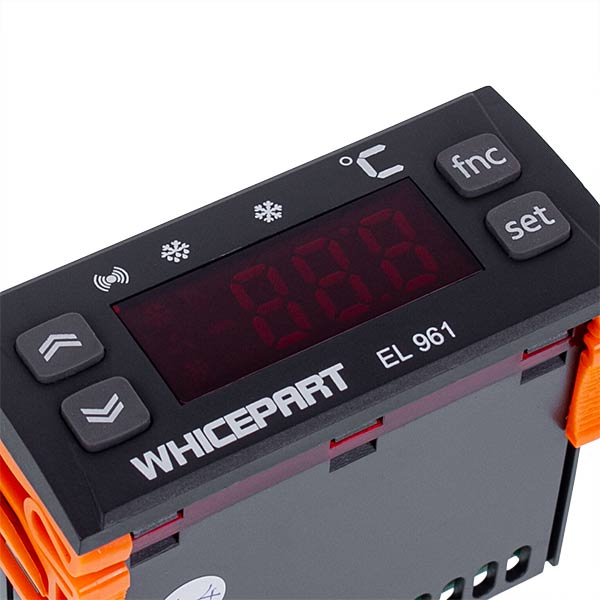

The Whicepart EL-961 temperature controller (microprocessor) is designed for ventilated refrigeration systems with medium to low temperatures (-45 to +10°C), refrigeration chambers, displays, and freezer cabinets. It features an input for a temperature sensor, either RTD or NTC (selected by parameter), and also includes a TTL port for using a copying card for swift device programming. Defrost cycle duration can be determined based on programmed time intervals as well as by the sensor reaching a defined value on the evaporator. The sensor's reading is displayed on a 3-digit display (with a minus sign). Temperature adjustment within the device ranges from -50 to +110°C.

Technical Specifications:

• 1 Fan Relay: Max 5(2)A at 250V AC;
• 1 Compressor Relay: UL60730 (A) 2 HP (12FLA – 72LRA) max 240V AC;
• Analog Inputs: 2 inputs for NTC (default)/PTC/PT1000 (configured by parameter H00);
• Temperature Control Range: NTC: -50...110°C (-58...230F), PTC: -50...140°C (-67...284F);
• Accuracy: NTC +/- 0.5°C (-30...50°C), other sensors +/- 1°C (-30..50°C), other +/- 2°C;
• Digital Outputs: 1 defrost relay: normally open 8(4)A – normally closed 6(3)A max 250V AC;
• Digital Inputs: 2 voltage-free inputs ("dry contacts");
• Display Resolution: 1°C/0.1°C with switching between whole and decimal values;
• Sensor Type: NTC (-50°C...120°C), PTC (-50°C...150°C);
• Power Consumption: Up to 4.5 W;

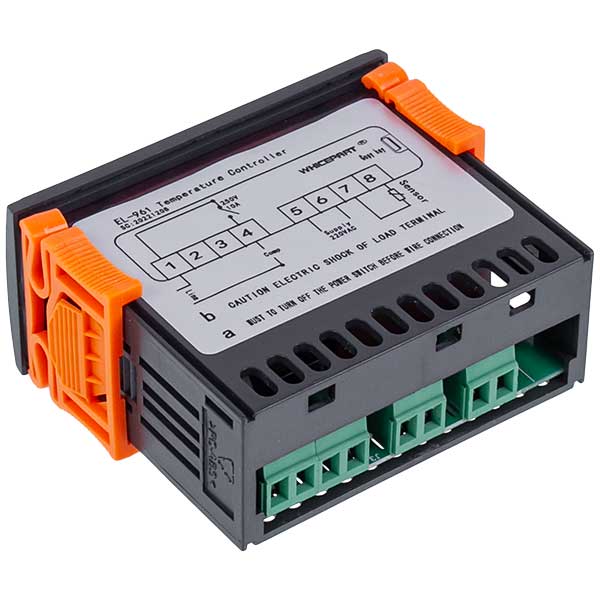

• Terminals: Screw terminals for cable up to 2.5 mm²;
• Enclosure: Plastic PC+ABS UL94 V-0, polycarbonate glass, thermoplastic buttons.

Operating Conditions:

• Power Supply: 230V AC 50/60 Hz;
• Temperature: -5°C to 55°C, humidity 10% to 90% (non-condensing);
• Storage Temperature: -30°C to 85°C.

Specifications:

• Dimensions: 72mm x 34mm x 59mm;

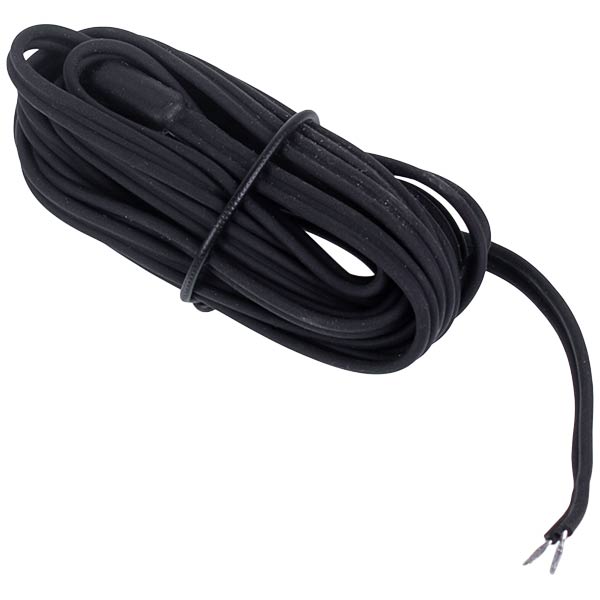

• Sensor Length: 2 meters.

Compatible Brand : Whicepart, SKL

Manufacturer : Whicepart

Brands for customs : Whicepart

Number of sensors : 1

Voltage, V : 220

Manufacturer for customs : Whicepart

Current strength, A : 20
