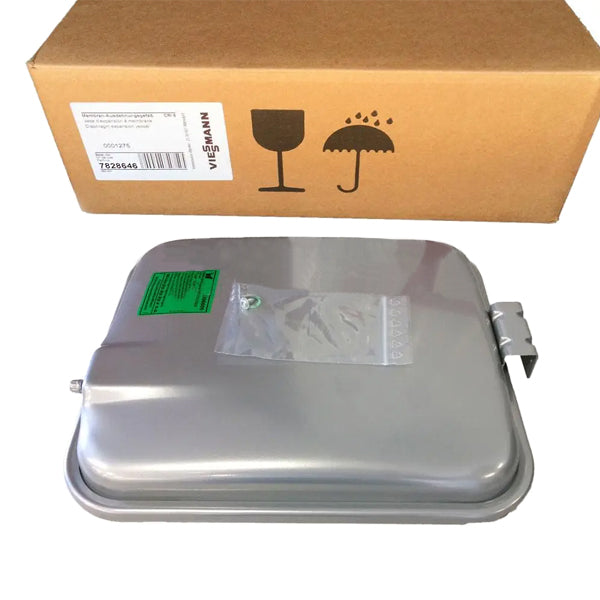

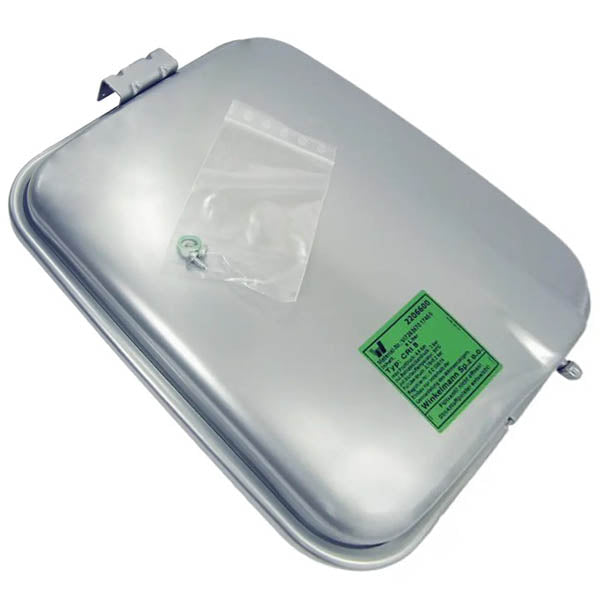

Expansion tank CRI8 7828646 for gas condensing boiler Viessmann WB1B serves to compensate for pressure changes occurring in the heating system due to fluctuations in water temperature. It allows the heating medium to expand and contract, preventing over-pressurization of the system.
Installing an expansion tank helps prevent heating system damage such as pipe and equipment ruptures caused by over-pressurization. It helps to maintain a stable pressure in the system, which is important for the efficient and safe operation of the Viessmann WB1B gas condensing boiler.
Controlling the pressure in the heating system with the expansion tank contributes to the safe and efficient operation of the boiler, preventing excessive wear and tear and damage.
Features:
Width: 250 mm.
Length: 440 mm.
Thickness: 90 mm.
Thread size: 3/8 inch.
Volume: 8 liters.
Air pressure: 0,75 bar (provided by the factory for proper operation of the boiler).
Maximum allowable pressure: 3 bar.
Compatible Brand : Viessmann
Manufacturer : Viessmann
Brands for customs : Viessmann
Type of spare part : Tank
Length, mm : 440
Volume, L : 8
Connection : 3/8''
Manufacturer for customs : Viessmann
Thickness, mm : 90
Form : rectangular
Width, mm : 250
