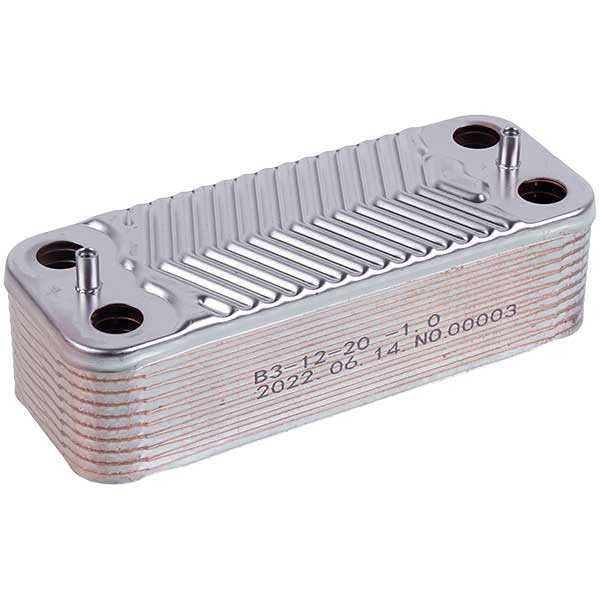

DHW Plate Heat Exchanger (20 plates) for Condensing Boiler Compatible with Viessmann Vitodens 100 WB1B, WB1C 35 kW 7828746

DHW plate heat exchanger for condensing boiler Compatible with Viessmann Vitodens 100 WB1B, WB1C 7828746.

Number of plates: 20.

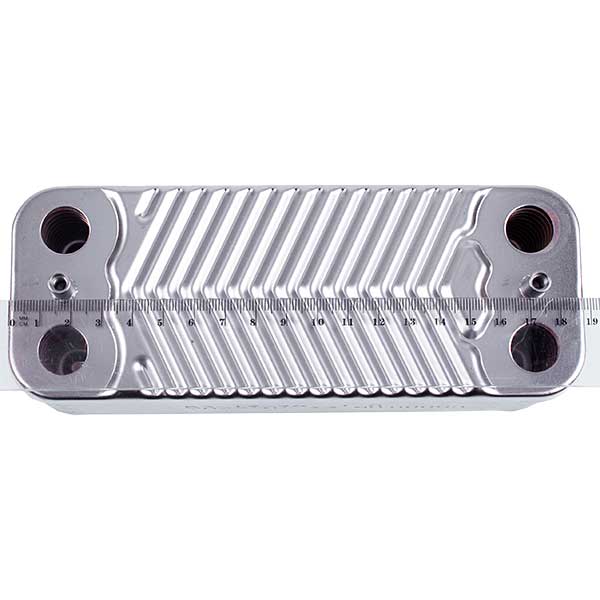

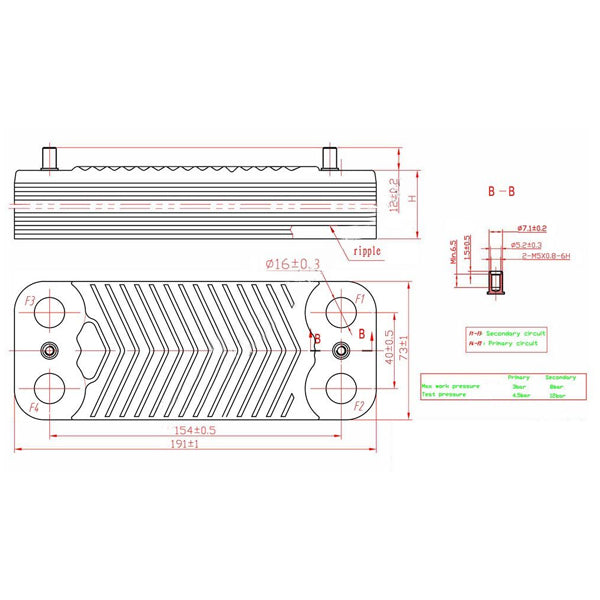

Length: 191 mm.

Width: 73 mm.

Depth: 54 mm.

Length between fasteners (center to center): 154 mm.

Length between holes (center to center): 154 mm.

Width between holes (center to center): 40 mm.

Diameter of holes: 16 mm.

For boilers with power: 35 kW.

Compatible Brand : Teplowest, Viessmann

Type of spare part : Heat exchanger

Depth, mm : 54

Hole diameter, mm : 16

Length, mm : 191

Number of plates : 20

Material : Copper

Hole distance, mm : 154

Distance between centers of fastenings, mm : 154

Heat exchanger type : Hot water heat exchangers, secondary plate

Width between holes, mm : 40

Width, mm : 73
