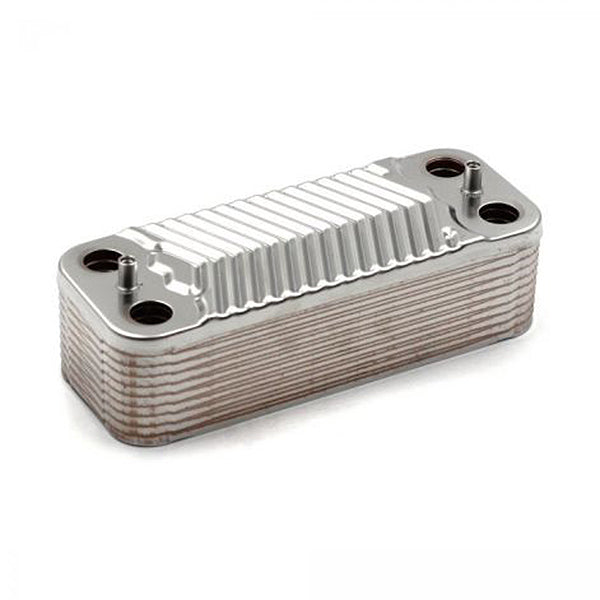

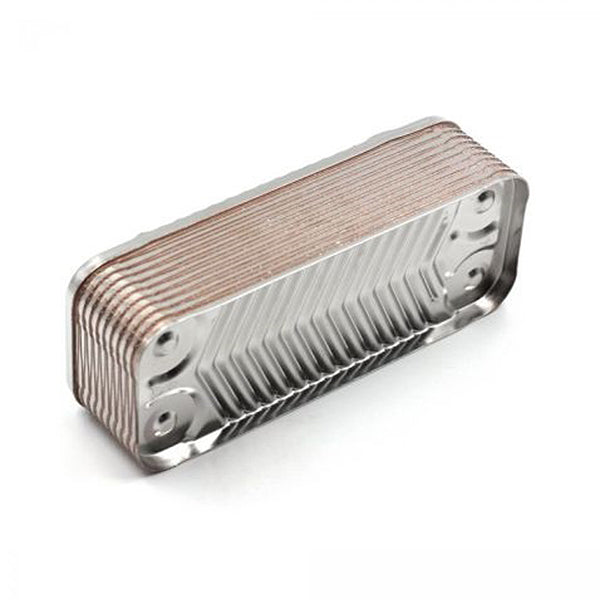

DHW Plate Heat Exchanger Swep (20 plates) for Condensing Boiler Viessmann Vitopend 100-W WH1B, A1JB 7875503

DHW plate heat exchanger for condensing boiler Viessmann Vitodens 100-W 7875503.

Number of plates: 20.

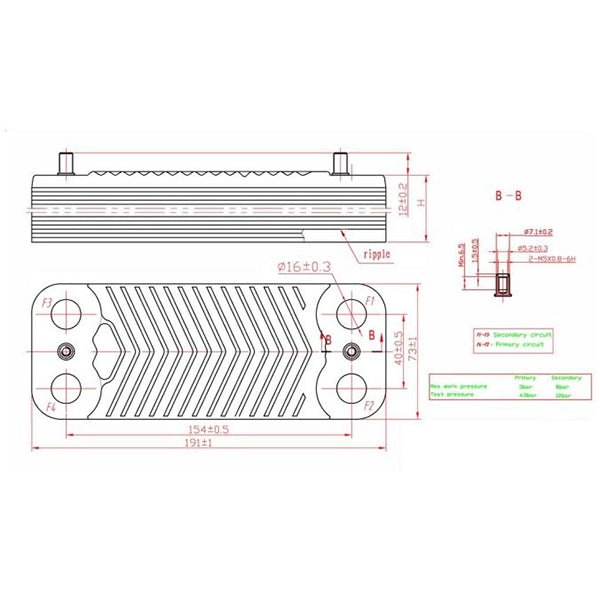

Length: 191 mm.

Width: 73 mm.

Depth: 50 mm.

Length between fasteners (center to center): 154 mm.

Length between holes (center to center): 154 mm.

Width between holes (center to center): 40 mm.

Hole diameter: 16 mm.

For boilers with power: 35 kW.

Manufacturer: Swep.

Compatible Brand : Teplowest, Viessmann

Manufacturer : Viessmann

Brands for customs : Viessmann

Type of spare part : Heat exchanger

Depth, mm : 50

Hole diameter, mm : 16

Length, mm : 191

Number of plates : 20

Material : Copper

Manufacturer for customs : Viessmann

Hole distance, mm : 154

Distance between centers of fastenings, mm : 154

Heat exchanger type : Hot water heat exchangers, secondary plate

Width between holes, mm : 40

Width, mm : 73
