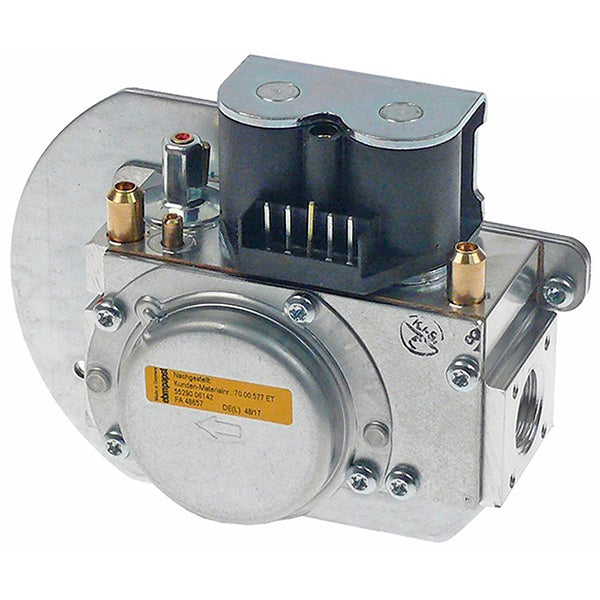

Gas Valve RH (hot air) Rational 87.01.153

The gas valve RH (hot air) 87.01.153 for Rational combi steamers SCC WE, CM P 61/62/101/201G is necessary to control and regulate the gas flow in the hot air system of combi steamers. This component is important to ensure that the hot air works properly during the cooking process.

Specifications

Type: GB-WIND 055 D01 S02 RH.

Series: D01.

Gas inlet: 1/2″ female thread.

Gas outlet: 5.5mm.

Nominal diameter: DN15mm.

Power consumption: 2x5.5VA.

Application: hot air.

Pressure range: 1.5-20mbar.

Frequency: 50/60Hz.

Power supply: 230V.

Pressure max.: 65mbar.

Compatible Brand : Rational

Manufacturer : Rational

Net weight, kg : 1.613

Type of spare part : Valve

Gas inlet : 1/2" internal thread

Pressure, bar : 65

Equipment : Assembled

Power, W : 2x5,5

Voltage, V : 230

Valve type : Gas

Frequency, Hz : 50/60

Manufacturer for customs : Rational

Brands for customs : Rational
