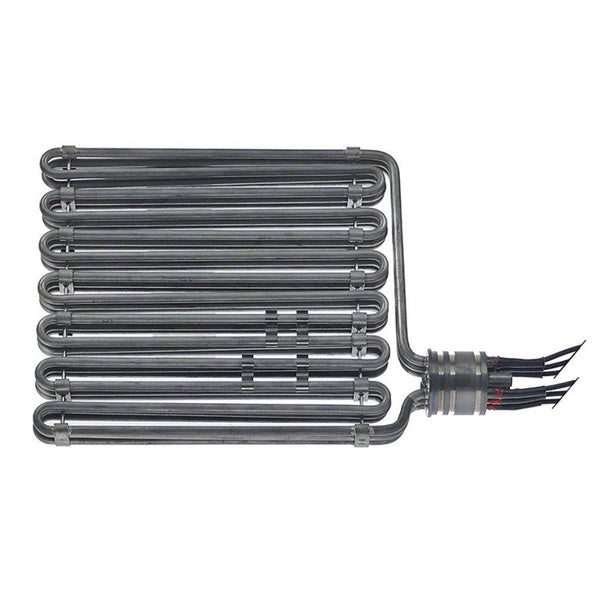

Heating Element for Deep Fryer Bertos E7F18, E9F15, E9F18 series 417764 18000W 230V retaining ring

Heating Element for Deep Fryer Bertos E7F18, E9F15, E9F18 series 417764.

Power: 18000 W.

Voltage: 230 V.

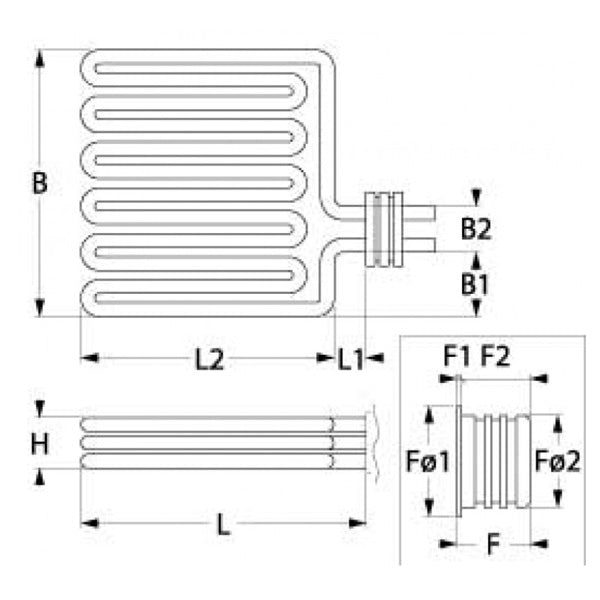

Length: 332 mm.

Application: deep fryer.

Thermostat sleeve position: top/bottom.

Thermostat threaded connection: 2x M10x1.

Width: 265 mm.

Thermostat sleeve diameter: 6.5 mm.

Flange length: 48 mm.

Flange diameter 1: 58 mm.

Flange diameter 2: 54 mm.

Length 1: 17 mm.

Length 2: 315 mm.

Width 1: 33 mm.

Width 2: 35 mm.

Mounting type: rotating flange.

Tube diameter: 8.5 mm.

Heating circuit: 3.

Cable length: 550 mm.

Height: 33 mm.

Compatible Brand : Bertos

Manufacturer : Bertos

Brands for customs : Bertos

Net weight, kg : 4.16

Type of spare part : Heating element

Mounting type : rotation flange

Height, mm : 33

Thermostat sleeve diameter, mm : 6.5

Pipe diameter, mm : 8.5

Cable length, mm : 550

Length diameter, mm : 48

Length, mm : 332

Heating circuit : 3

Power, W : 18000

Voltage, V : 230

Position thermostat sleeve : top/bottom

Accession : M10x1

Manufacturer for customs : Bertos

Width, mm : 265
