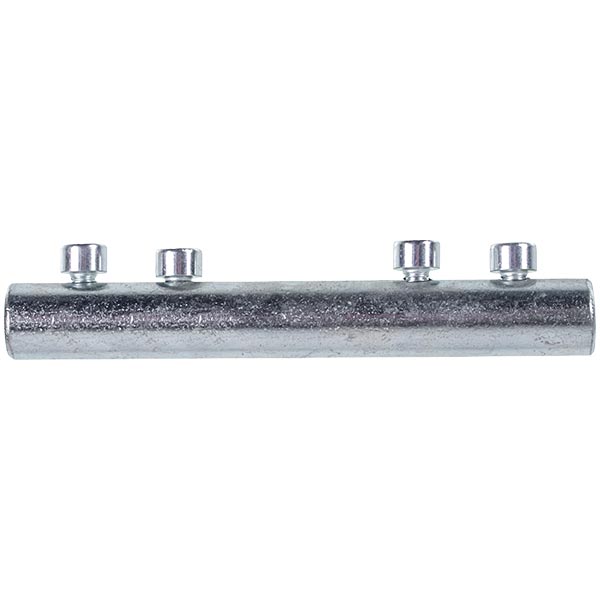

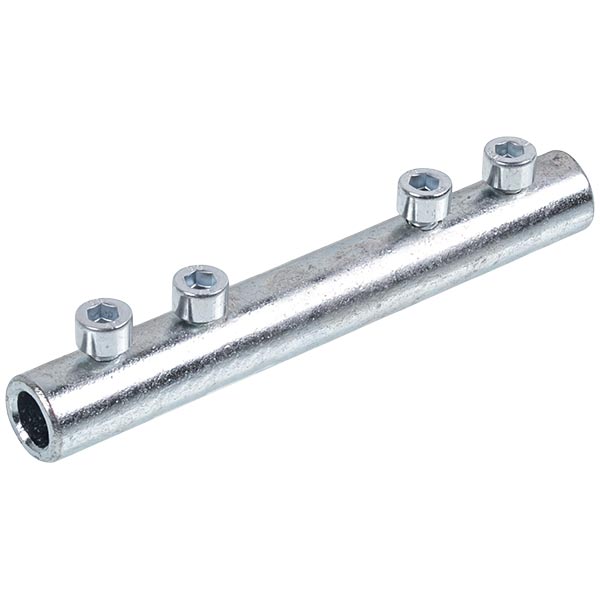

Hot-dip Galvanized Stee Longitudinal Conductor Clamp OCH

Hot-dip Galvanized Stee Longitudinal Conductor Clamp OCH.

Provides a reliable longitudinal connection of 8 mm diameter lightning protection conductors, which is necessary to create a continuous and efficient path for lightning egress. Specifically designed for lightning protection applications where a secure conductor connection is required.

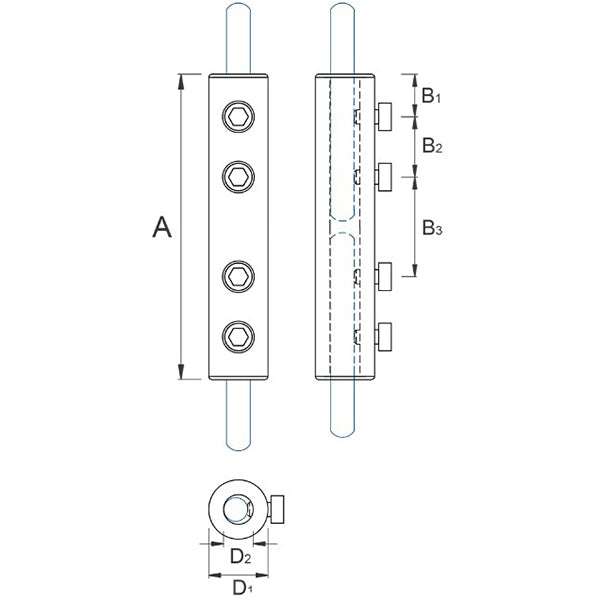

Length (A): 120 mm.

Dimensions (B1/B2/B3): 20/20/40 mm.

Diameters (D1/D2): 16/10 mm.

Fastening: 4 M6x15 bolts.

Made of hot-dip galvanized steel, which provides high strength and resistance to mechanical stress and corrosion. Thanks to hot-dip galvanizing, the clamp has a high degree of protection against corrosion, which extends its service life even in harsh environments.

Allows longitudinal connections (A with B):

A) wire diameter from 6 to 8 mm;

B) wire diameter from 6 to 8 mm.

Compatible Brand : Універсальні

Type of spare part : Clamp

Diameter, mm : 16/10

Length, mm : 120

Fastening : M6x15 bolts

Material : Hot-dip galvanized steel

Coating : Hot-dip galvanized
