Description

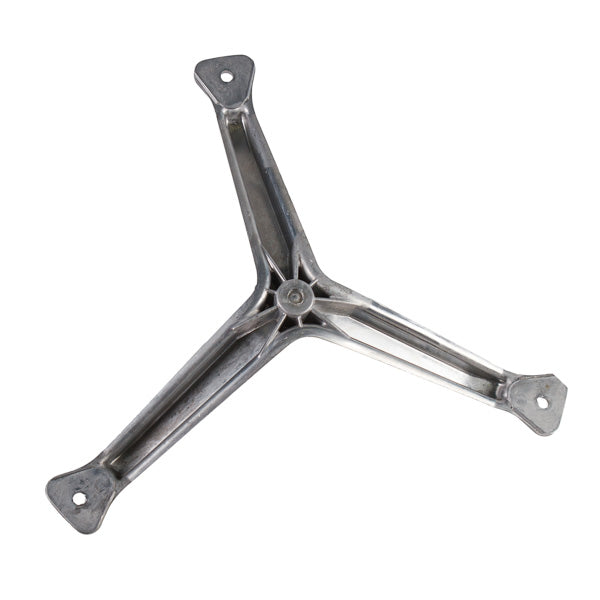

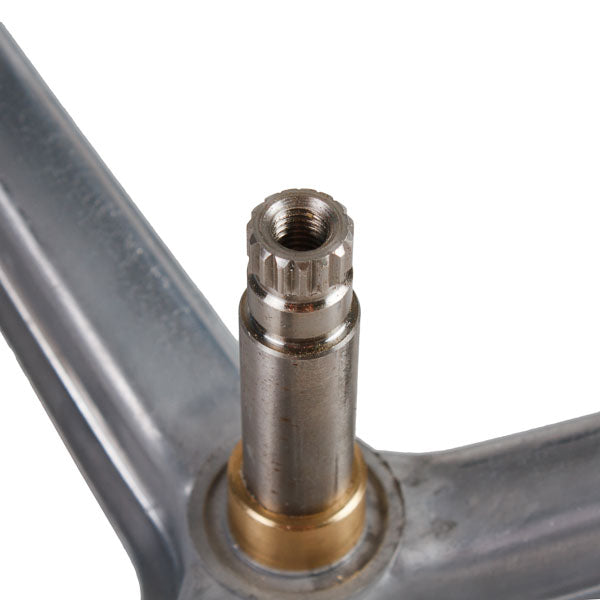

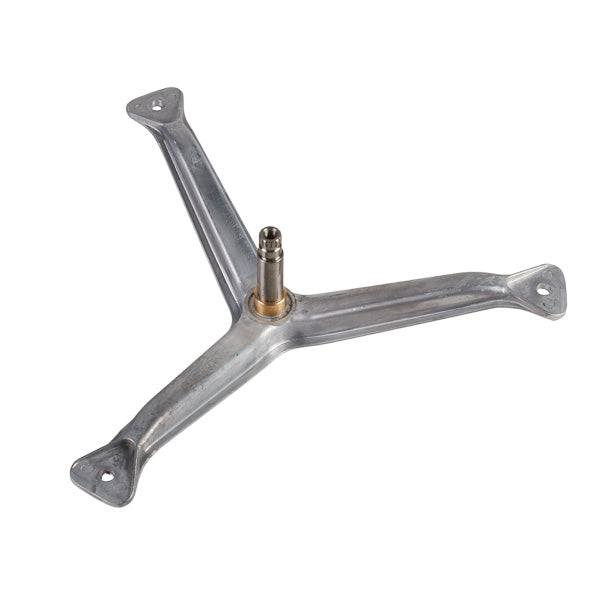

Drum Spider (Flange Shaft) COD.055 EBI For Washing Machine Compatible with Indesit.
Compatible Brand : Ariston, Indesit
Manufacturer : EBI
Brands for customs : EBI
Type of spare part : Cross and support units
The height of the sleeve under the stuffing box, mm (±1 mm) : 16
The diameter of the sleeve under the stuffing box, mm (±0,3 mm) : 25
Bearing seat diameter 1, mm (±0.3 mm) : 17
Bearing seat diameter 2, mm (±0.3 mm) : 20
Shaft length, mm (±2 mm) : 85
Mounting to drum : 11 mm
Pulley fastening : M10
Bearings : 6203, 6204
Manufacturer for customs : EBI
Distance between bearings, mm (±1 mm) : 48
Distance from the axis of the shaft to the axis of the drum attac : 206
|
|
Models, Types, Codes
Suits to types:
F022484( 869990224840), F022503(859990225030 869990225030), F023308( 869990233080), F023310( 869990233100), F023317( 869990233170), F023320( 869990233200), F023321( 869990233210), F023329( 869990233290), F023330( 869990233300), F023332( 869990233320), F023334( 869990233340), F023335( 869990233350), F023337( 869990233370), F023386( 869990233860), F023589( 869990235890), F023590( 869990235900), F023781( 869990237810), F023878( 869990238780), F023879( 869990238790), F023909( 869990239090), F023910( 869990239100), F024415( 869990244150), F024599( 869990245990), F024600( 869990246000), F024768( 869990247680), F024833( 869990248330), F024834( 869990248340), F025379( 869990253790), F025474( 869990254740), F025885( 869990258850), F025886( 869990258860), F026878( 869990268780), F026879( 869990268790), F026880( 869990268800), F027093( 869990270930), F027094( 869990270940), F027113( 869990271130), F027299( 869990272990), F027639( 869990276390), F027640( 869990276400), F027641( 869990276410), F027647( 869990276470), F027648( 869990276480), F027699( 869990276990), F027700( 869990277000), F027757( 869990277570), F027761( 869990277610), F027913( 869990279130), F027914( 869990279140), F028013( 869990280130), F028016( 869990280160), F028017( 869990280170), F028119( 869990281190), F028193( 869990281930), F028305( 869990283050), F028306( 869990283060), F028320( 869990283200), F028382( 869990283820), F028383( 869990283830), F028400( 869990284000), F028626( 869990286260), F028674( 869990286740), F028675( 869990286750), F028676( 869990286760), F028875( 869990288750), F028876( 869990288760), F028877( 869990288770), F029378( 869990293780), F029540( 869990295400), F029541( 869990295410), F029549( 869990295490)
Suits to models:
AB103TK, AB104IT, AB107PT, AB63EX2205060, AB64EX11560, AB66IT, AB83TK, AB84IT, AB84PT, AB95AUS, AB95EU, AL102PFR, AL109AUS, AL109EU, AL109K22060, AL10UK, AL65PT, AL68EU, AL88EU, AL9UK, LNA1000FR, LNA856FR, W101EX, W101UK, W103NL, W103TTK, W103UK, W104DE, W104NL, W104SP, W104TBE, W104TCH, W104TEX, W104TTK, W105FR, W107FR, W113UK, W63TAUS, W63TEX5060HZ, W73FR, W81EX, W83DE, W83FR, W83NL, W83SP, W83TAUS, W83TEX, W83TK, W83TTK, W84TTK, W85FR, W93TEX, W93UK, W9521E, W95FR, WA105UK, WA10IT, WA10PT, WA115UK, WA6IT, WA6PT, WA8IT, WA8PT, WAP61EX, WE10EX, WE10IT1, WE8EX, WE8IT1, WP100EX, WP67EX, WP80EX
Suits to codes:
46224840000, 46224840001, 46224840030, 46225030000, 46225030001, 46233080100, 46233080200, 46233080201, 46233080301, 46233080501, 46233080530, 46233100100, 46233100201, 46233100301, 46233100401, 46233100430, 46233170000, 46233170001, 46233170030, 46233200100, 46233200101, 46233200130, 46233210100, 46233210101, 46233210130, 46233290000, 46233290001, 46233300100, 46233300101, 46233300130, 46233300140, 46233320100, 46233320101, 46233320130, 46233340100, 46233340101, 46233340130, 46233350100, 46233350101, 46233350140, 46233370100, 46233370101, 46233370130, 46233860100, 46233860101, 46233860130, 46235890000, 46235890100, 46235890101, 46235900000, 46235900100, 46235900101, 46237810000, 46237810101, 46237810130, 46238780000, 46238780001, 46238790000, 46238790001, 46238790030, 46239090000, 46239090030, 46239100100, 46239100101, 46239100130, 46244150000, 46244150001, 46244150030, 46245990000, 46245990001, 46246000000, 46246000001, 46246000030, 46247680000, 46247680001, 46248330000, 46248330001, 46248330030, 46248340000, 46248340001, 46248340030, 46253790101, 46253790130, 46254740000, 46254740001, 46254740030, 46258850100, 46258850130, 46258860000, 46258860030, 46268780000, 46268780030, 46268790000, 46268790030, 46268800000, 46268800030, 46270930000, 46270930030, 46270940000, 46270940030, 46271130000, 46272990000, 46272990040, 46276390000, 46276390030, 46276400000, 46276400030, 46276410000, 46276410030, 46276470000, 46276470030, 46276480000, 46276480030, 46276990000, 46276990040, 46277000000, 46277000040, 46277570000, 46277570030, 46277610000, 46277610030, 46279130000, 46279130030, 46279140000, 46279140030, 46280130000, 46280160000, 46280160040, 46280170000, 46281190000, 46281190030, 46281930000, 46281930030, 46283050000, 46283050030, 46283060000, 46283060030, 46283200000, 46283820000, 46283820030, 46283830000, 46283830030, 46284000000, 46284000030, 46286260000, 46286260040, 46286740000, 46286740040, 46286750000, 46286760000, 46286760040, 46288750000, 46288760000, 46288760030, 46288770000, 46288770030, 46293780000, 46293780040, 46295400000, 46295400030, 46295410000, 46295410030, 46295410046, 46295490000, 46295490030
If you can't find your model in our Store list - write us an email letter with full Model Number, Type or Ref of item You are interesting in we offer You best service and price! Our online store sells spare parts and accessories for small and large household appliances for such brands like Electrolux, Braun, Zanussi, Samsung, LG, Philips, Gorenje, Thomas, Miele, Whirlpool, Ariston, Indesit and many other famous brands of household appliances! We have over 15,000 items on stock that can be sold both retail and wholesale. We can offer best service to any country of the world! If You need to know something more than shown in my store just ask!!! Looking for a long time cooperation!
|
|
