Description

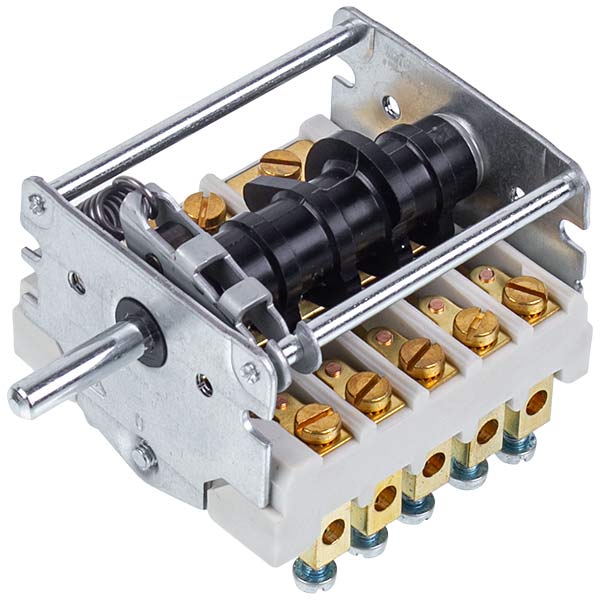

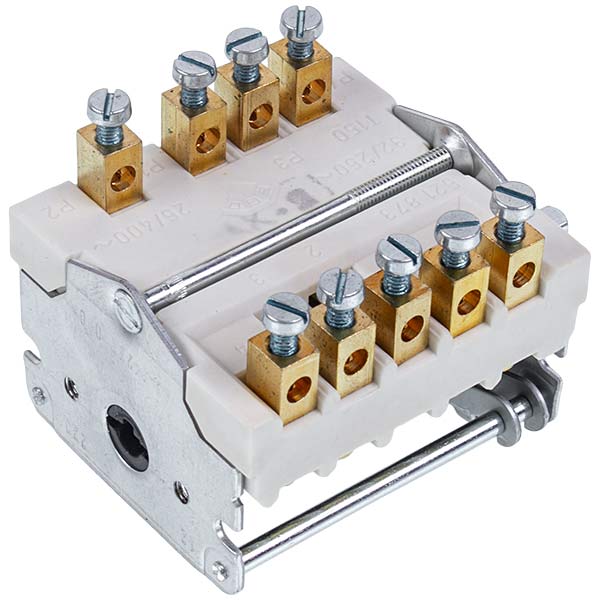

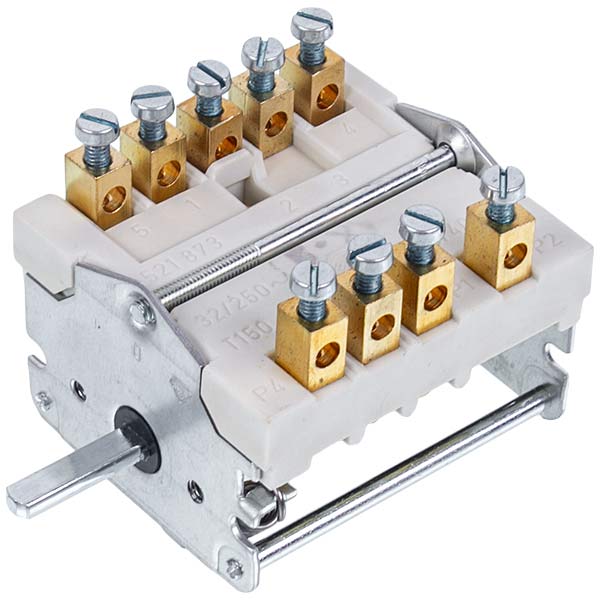

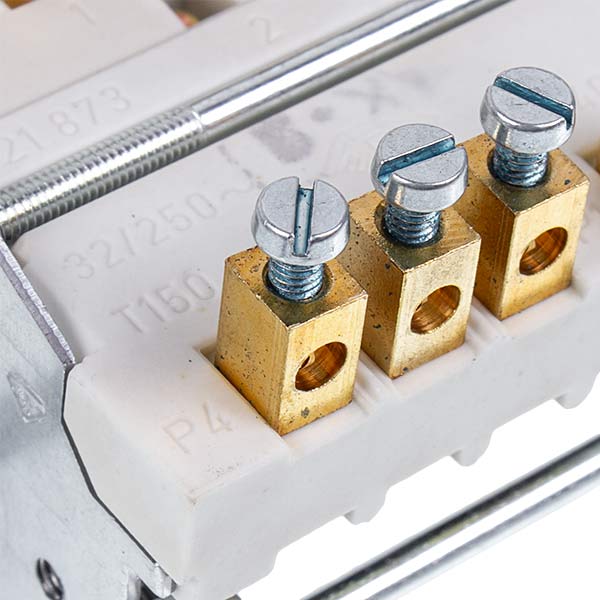

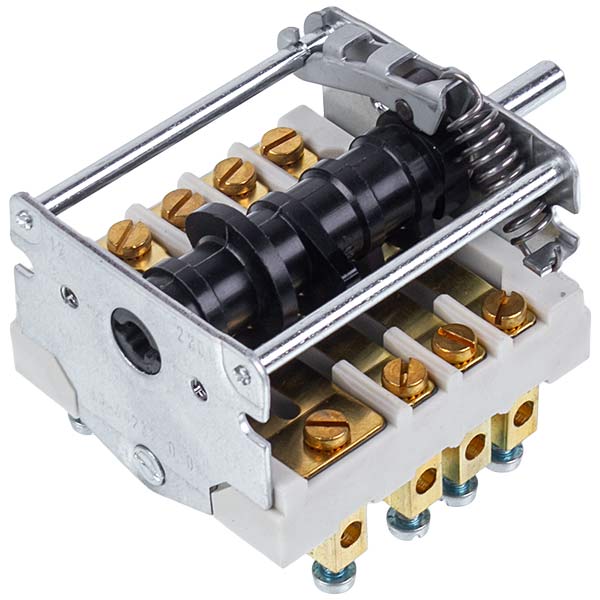

EGO 43.34232.000 Mode Selector.
This device is designed for selecting and controlling different operating modes in electrical devices. It features four positions, allowing for switching between four distinct operational modes.
Specifications:
Material: Ceramic.
Number of Positions: 4.
Switching Sequence: 0-1-2-3.
Connection: Screw terminal.
Function: 1NO / 2CO.
Current Rating: 32A.
Voltage: 250V.
Shaft Diameter: 6x4.6 mm.
Shaft Length: 23 mm.
Shaft Material: Metal.
Number of Terminals: 9 screw terminals.
Number of Contact Rows on the Terminal Block: 5.
Dimensions: 64x60x51 mm.
Compatible Brand : Ambach, Apach, Fiamma, Bertos, CAPIC, Dexion, Electrolux, Gico, Giga, Hobart, LOZAMET, MBM, Palux, Roller Grill, Stalgast, Zanussi, EGO
Manufacturer : EGO
Brands for customs : EGO
Net weight, kg : 0.325
Type of spare part : Switch
Shaft diameter, mm : 4,5x6
Shaft length, mm (±2 mm) : 23
Material : Ceramics
Voltage, V : 250
Manufacturer for customs : EGO
Dimensions, mm : 64x60x51
Current strength, A : 32
Fastening type : screw connection
Switch type : 4 position
Function : 1no/2co
|
|
Models, Types, Codes
Suits to models:
64-755T, 700-528, 7550-3, 7550-3/85.KES40.(N), 7550-3/90.KES40.(N), 7551-3, 7551-3/85.KES60, 7551-3/90.KES60, 7552-3, 7552-3/85.KES80.(N), 7552-3/90.KES80.(N), 7553-3, 7553-3/85.KES100.(N), 7553-3/90.KES100.(N), 7554-3, 7554-3/85.KES150.(N), 7554-3/90.KES150.(N), 7560-3, 7561-3, 7561-3.KES60.RW, 7561-3/85.KES60.RW., 7561-3/85.KES60.RW.(N), 7561-3/90.KES60.RW., 7561-3/90.KES60.RW.(N), 7562-3, 7562-3.KES80.RW, 7562-3/85.KES80.RW., 7562-3/85.KES80.RW.(N), 7562-3/90.KES80.RW., 7562-3/90.KES80.RW.(N), 7563-3, 7563-3.KES100.RW, 7563-3/85.KES100.RW., 7563-3/85.KES100.RW.(N), 7563-3/90.KES100.RW., 7563-3/90.KES100.RW.(N), 7564-2, 7564-3.KES150.RW, 7564-3/85.KES150.RW., 7564-3/85.KES150.RW.(N), 7564-3/90.KES150.RW., 7564-3/90.KES150.RW.(N), 7568-3, 7569-3/85.KK200.MOTK.(N), 7569-3/90.KK200.MOTK.(N), 7573-3, 7573-3/85.KES100.(N), 7573-3/90.KES100.(N), 7574-3, 7574-3/85.KES150.(N), 7574-3/90.KES150.(N), 7575-3, 7575-3/85.KES250.(N), 7575-3/90.KES250.(N), 7576-3, 7576-3/85.KES300.(N), 7576-3/90.KES300.(N), 7577-3, 7580-3, 7581-3, 7582-3, 7583-3, 7584-3, 7585-3/85.KK40.MOTK., 7585-3/85.KK40.MOTK.(N), 7585-3/90.KK40.MOTK., 7585-3/90.KK40.MOTK.(N), 7586-3/85.KK60.MOTK., 7586-3/85.KK60.MOTK.(N), 7586-3/90.KK60.MOTL., 7586-3/90.KK60.MOTL.(N), 7587-3/85.KK80.MOTK., 7587-3/85.KK80.MOTK.(N), 7587-3/90.KK80.MOTK., 7587-3/90.KK80.MOTK.(N), 7588-3/85.KK100.MOTK, 7588-3/85.KK100.MOTK.(N), 7588-3/90.KK100.MOTK, 7588-3/90.KK100.MOTK.(N), 7589-3/85.KK150.MOTK.(N), 7589-3/90.KK150.MOTK.(N), 7750-3, 7750-3/85.KES40, 7750-3/90.KES40, 7751-3, 7751-3/85.KES60, 7751-3/90.KES60, 7752-3, 7752-3/85.KES80, 7752-3/90.KES80, 7753-3, 7753-3/85.KES100, 7753-3/90.KES100, 7754-3, 7754-3/85.KES150, 7754-3/90.KES150, 7768-3, 7769-3/85.KK200.MOTK.(N), 7769-3/90.KK200.MOTK.(N), 7773-3, 7773-3/85.KES100, 7773-3/90.KES100, 7774-3, 7774-3/85.KES150, 7774-3/90.KES150, 7775-3, 7775-3/85.KES250, 7775-3/90.KES250, 7776-3, 7776-3/85.KES300, 7776-3/90.KES300, 7780-3, 7781-3, 7782-3, 7783-3, 7784-3, 7785-3/85.KK40.MOTK.(N), 7785-3/90.KK40.MOTK.(N), 7786-3/85.KK60.MOTK.(N), 7786-3/90.KK60.MOTK.(N), 7787-3/85.KK80.MOTK.(N), 7787-3/90.KK80.MOTK.(N), 7788-3/85.KK100.MOTK.(N), 7788-3/90.KK100.MOTK.(N), 7789-3/85.KK150.MOTK.(N), 7789-3/90.KK150.MOTK.(N), 900-523, 900-526, 920-523, 920-526, 971500, 971700, APKE-77, APPE-47P, APPE-77P, BCE10KI, BCE15KI, BCEDPC, BCESPC, BKE.250.1, BKE.300.1, BKE.350.1, BKE-150.1, BKE-50.1, BME10KI, BME15KI, BMEDPC, BMESPC, BPE-50, CCPE4, CCPE6, CP704E, CP92E, CP94E, CP9SB2E, CP9SB4E, CPE-35, CPE40, CPE402, CPE60, CPE602, CPE-70, D77EC4/SC, E100, E100A, E100I, E100I8, E100I9, E100I98, E100IA, E100IT9, E150, E150A, E150I, E150I8, E150I9, E150I98, E150IA, E150IT9, E50I7, E50I77, E6BM6M, E6CP6B, E6CP6M, E6CPM, EC408-SC, EC45, EC477, EC477-SC, EC49, EC498-SC, EC498T-SC, EC49T, EC66, EC777, EC777-SC, EC777T, EC902V, EC9082V-SC, EC992V, EC992VT, EC9982V-SC, EC9982VT-SC, ECRM6, EFP01, EKP40, ELT.06, ELT.06/H, EM72CPE, ENA.40.3/7, ENA.70.3/7, EPK-40, EUK-, EUK-45, EUK-45II, EUK-45II-BF, FP1E, FRM 160, GRILL-680-683, GRILL-682, GRILL-683, HEC47, HEC77, HOT-COUNTER-50-85-120, ICPE4, ICPE6, KCP4E, KCP82E, L700.BKE.60.5, L700.BKE.80.5, L700.WME400, L700.WME800, L700.WME800-2, L900.BKE.100.3, L900.BKE.150.3, L900.BKE.200.2, LEW 400, LEW 600, LEW 602, LINIA 900, LX7EC4, LX9E150I, MARENO, ME066-03-008, ME099-05-021, ME099-05-305, MG7E50I77, MG7EC477-SC, MG7EC777-SC, OPCP4E, OPCP82E, PM7N528, PM9N523, PM9N526, RF 25DS2P, RF14S, RF25S, RFE 16C, SKCP40E, SKCP60E, TCP40E, TCP60E, W290914, W380914, W380918, W380924, W380928, W380934, W380938, W380944, W381511, W381521, W381531, W381541, WKE.100.9, WKE.150.9, WKE.250.1, WKE.300.1, WKE.350.1
Suits to codes:
615375, 615376, 615377, 615378, 617115, 617204, 617205, 617206, 617207, 617208, 617209, 617210, 617211, 617212, 617213, 617231, 617232, 617233, 617234, 617235, 617236, 617237, 617238, 617239, 617240, 617241, 617242, 617243, 617244, 617245, 617246, 617285, 617286, 617287, 617288, 617290, 617291, 617292, 617293, JUN75503, JUN75513, JUN75523, JUN75533, JUN75543, JUN75603, JUN75613, JUN75623, JUN75633, JUN75642, JUN75683, JUN7569385, JUN7569390, JUN75733, JUN75743, JUN75753, JUN75763, JUN75773, JUN75803, JUN75813, JUN75823, JUN75833, JUN75843, JUN7589385, JUN7589390, JUN77503, JUN7750385, JUN7750390, JUN77513, JUN7751390, JUN77523, JUN7752385, JUN7752390, JUN77533, JUN7753385, JUN7753390, JUN77543, JUN7754385, JUN7754390, JUN77683, JUN7769385, JUN7769390, JUN77733, JUN7773385, JUN7773390, JUN77743, JUN7774385, JUN7774390, JUN77753, JUN7775385, JUN7775390, JUN77763, JUN7776385, JUN7776390, JUN77803, JUN77813, JUN77823, JUN77833, JUN77843, JUN7785385, JUN7785390, JUN7786385, JUN7786390, JUN7787385, JUN7787390, JUN7788385, JUN7788390, JUN7789385, JUN7789390
