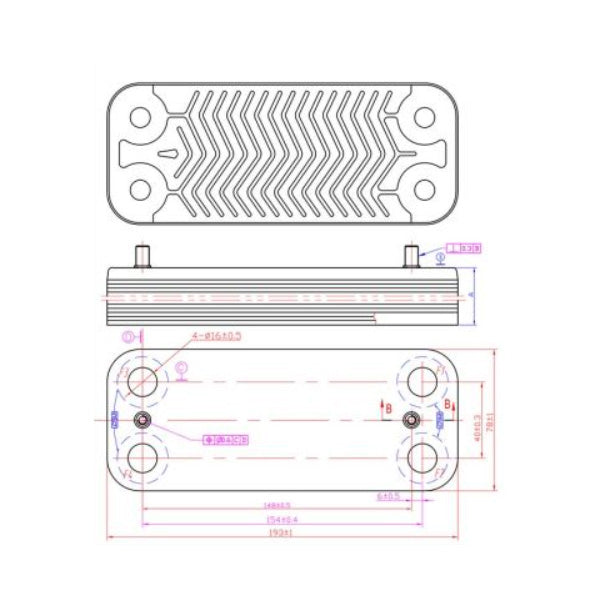

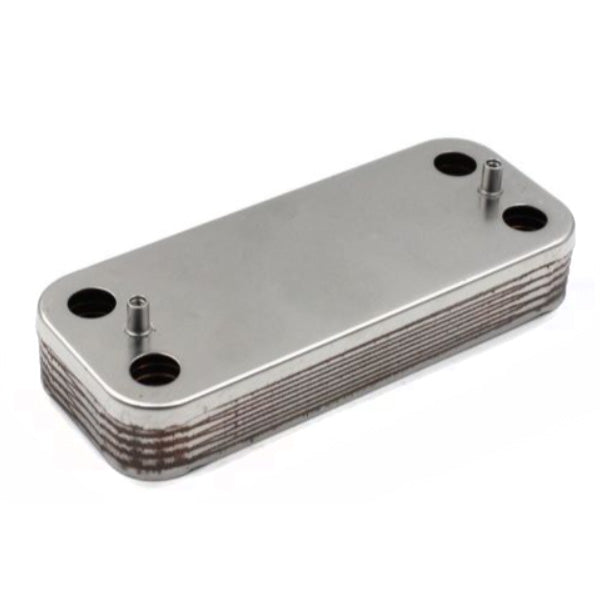

DHW Plate Heat Exchanger (10 plates) for Gas Boiler 17B1901000

DHW plate heat exchanger for gas boiler 17B1901000.

Number of plates: 10.

Length: 193 mm.

Width: 78 mm.

Length between fasteners (center to center): 148 mm.

Length between holes (center to center): 154 mm.

Width between holes (center to center): 40 mm.

Hole diameter: 16 mm.

Used in boilers: Ariston, Beretta, Biasi, Buderus, Chaffoteaux, E.C.A., Fondital, Viessmann, Zoom.

Compatible Brand : Ariston, E.C.A., Buderus, Zoom, Fondital, Beretta, Viessmann, Chaffoteaux, Biasi

Type of spare part : Heat exchanger

Hole diameter, mm : 16

Length, mm : 193

Number of plates : 10

Material : Copper

Hole distance, mm : 154

Distance between centers of fastenings, mm : 148

Heat exchanger type : Hot water heat exchangers, secondary plate

Width between holes, mm : 40

Width, mm : 78
