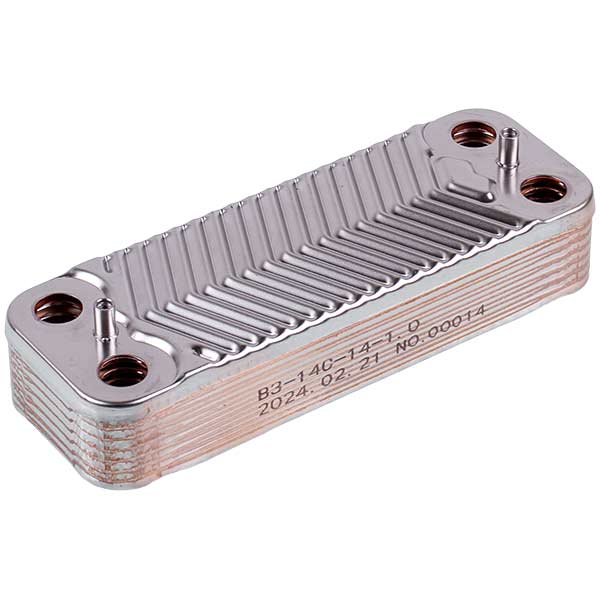

DHW Plate Heat Exchanger (14 plates) for Gas Boiler Compatible with Protherm Tiger 24 KTV12, 24 KOV12 0020025294

DHW plate heat exchanger for gas boiler Compatible with Protherm Tiger 24 KTV12, 24 KOV12 0020025294.

Number of plates: 14 .

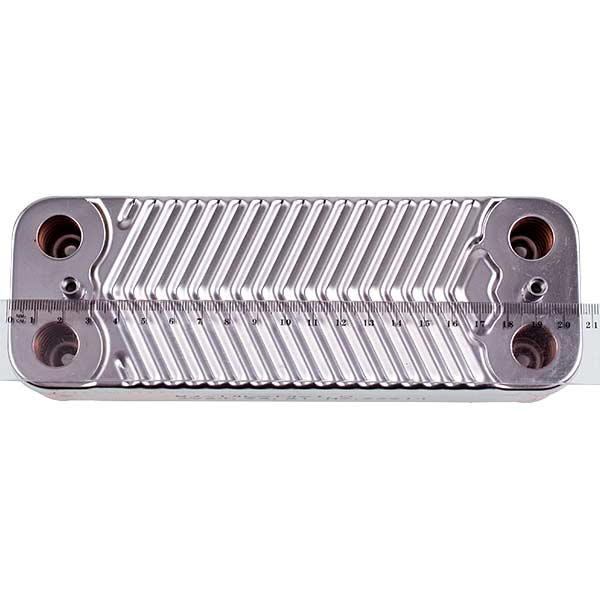

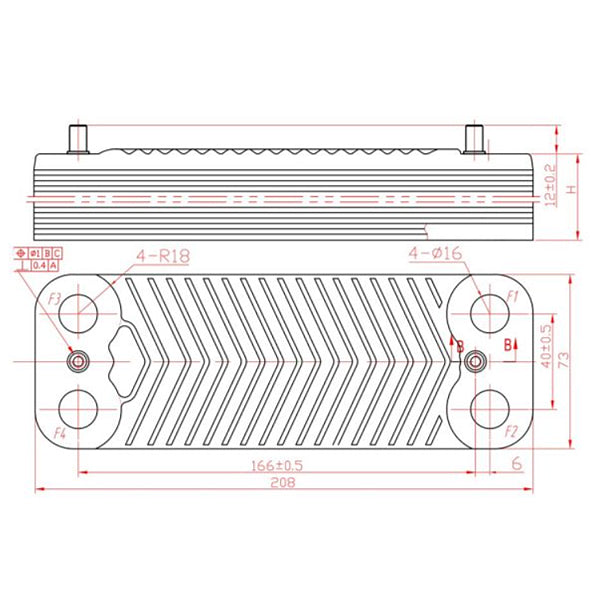

Length: 208 mm.

Width: 73 mm.

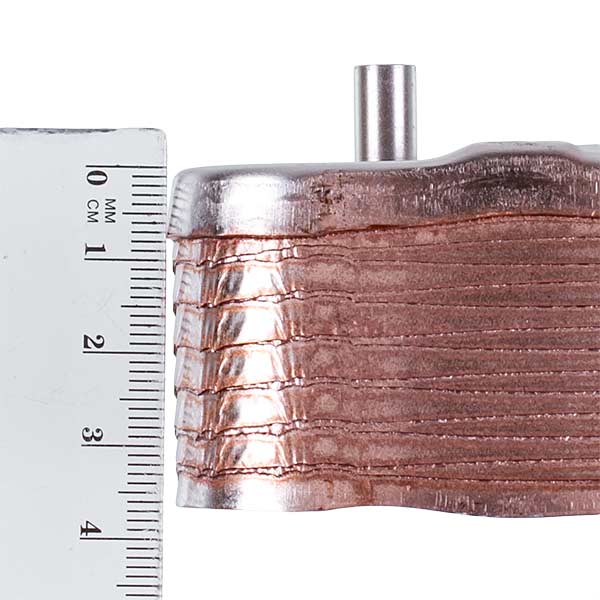

Depth: 38 mm.

Length between fasteners (center to center): 166 mm.

Length between holes (center to center): 172 mm.

Width between holes (center to center): 40 mm.

Hole diameter: 16 mm.

Package includes: sealing rings.

Compatible Brand : Ariston, Demrad, Protherm, Ferroli

Type of spare part : Heat exchanger

Depth, mm : 38

Hole diameter, mm : 16

Length, mm : 208

Number of plates : 14

Material : Copper

Hole distance, mm : 172

Distance between centers of fastenings, mm : 166

Heat exchanger type : Hot water heat exchangers, secondary plate

Width between holes, mm : 40

Width, mm : 73
