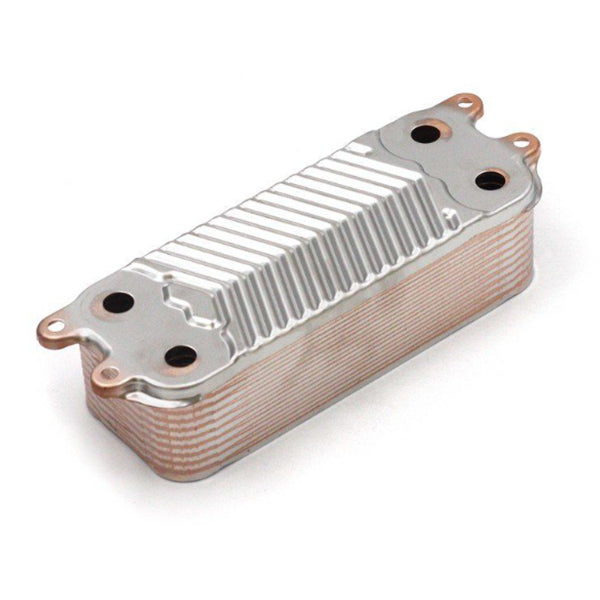

DHW Plate Heat Exchanger (19 plates) for Gas Boiler Vaillant Atmo/Turbo/Eco TEC Plus 0020038572

Vaillant

$205.72 USD

~~$0.00 USD~~ $205.72 USD

Sale Sold out

Product variants

Quantity

EBAY

Description

DHW plate heat exchanger for gas boiler Vaillant Atmo/Turbo/Eco TEC Plus 0020038572.

Number of plates: 19.

Length: 190 mm.

Depth: 50 mm.

Overall length: 220 mm.

Length between fasteners (center to center): 205 mm.

Length between holes (center to center): 154 mm.

Width between holes (center to center): 40 mm.

Hole diameter: 12 mm.

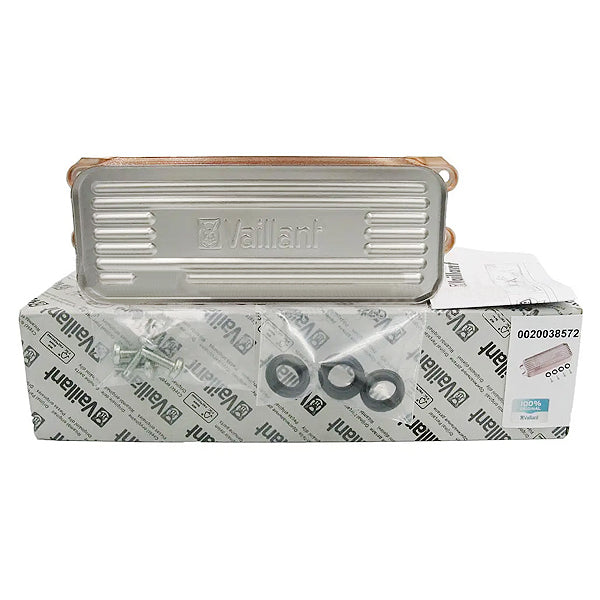

Contents: supplied with gaskets and mounting bolts.

Compatible Brand : Vaillant, Protherm

Manufacturer : Vaillant

Brands for customs : Vaillant

Type of spare part : Heat exchanger

Depth, mm : 50

Hole diameter, mm : 12

Length, mm : 190

Number of plates : 19

Material : Copper

Manufacturer for customs : Vaillant

Hole distance, mm : 154

Distance between centers of fastenings, mm : 205

Fastening type : 4-lug mount

Heat exchanger type : Hot water heat exchangers, secondary plate

Width between holes, mm : 40

Models, Types, Codes

Suits to models:

VCI 306/5-5 (PL) R6, VCI 346/5-5 (PL) R6, VCI DK 246/5-5 R4, VCI DK 246/5-5 R6, VCI PL 296/5-5 R5, VCI PL 346/5-5 R5, VCW 306/5-5 (PL) R6, VCW 346/5-5 (PL) R6, VCW DK 196/3-5, VCW DK 196/3-5 A, VCW DK 196/3-5 A R5, VCW DK 196/3-5 R3, VCW DK 196/3-5 R5, VCW DK 246/5-5 R2, VCW DK 246/5-5 R3, VCW DK 246/5-5 R4, VCW DK 246/5-5 R6, VCW KR 236/5-5 F R4, VCW KR 236/5-5 F R5, VCW KR 286/5-5 F R4, VCW KR 286/5-5 F R5, VCW PL 296/5-5 R2, VCW PL 296/5-5 R4, VCW PL 296/5-5 R5, VCW PL 346/3-5, VCW PL 346/3-5 R3, VCW PL 346/3-5 R5, VCW PL 346/5-5 R2, VCW PL 346/5-5 R4, VCW PL 346/5-5 R5, VSC 206/4-5 150, VSC 206/4-5 150 (PL), VSC 206/4-5 150 (PL) R1, VSC 206/4-5 150 R1, VSC 206/4-5 200 (RU), VSC 206/4-5 200 (RU) R1, VSC 206/4-5 90, VSC 206/4-5 90 (PL), VSC 206/4-5 90 (PL) R1, VSC 206/4-5 90 R1, VSC AT 126/2-C 140, VSC AT 196/2-C 150, VSC AT 246/2-C 210, VSC D 206/4-5 190, VSC D 206/4-5 190 (PL), VSC D 206/4-5 190 (PL) R1, VSC D 206/4-5 190 R1, VSC DK 126/2-C 140, VSC DK 126/2-C 140 R1, VSC DK 126/2-C 140 R3, VSC DK 196/2-C 150, VSC DK 196/2-C 150 R1, VSC DK 196/2-C 150 R3, VSC DK 246/2-C 210, VSC DK 246/2-C 210 R1, VSC DK 246/2-C 210 R3, VSC INT 126/2-C 140, VSC INT 126/2-C 140 R1, VSC INT 126/2-C 140 R3, VSC INT 196/2-C 150, VSC INT 196/2-C 150 R1, VSC INT 196/2-C 150 R3, VSC INT 246/2-C 170, VSC INT 246/2-C 170 R1, VSC INT 246/2-C 170 R3, VSC INT 246/2-C 210, VSC INT 246/2-C 210 R1, VSC INT 246/2-C 210 R3, VSC INT 306/2-C 200, VSC INT 306/2-C 200 R1, VSC INT 306/2-C 200 R3, VSC S 126/2-C 180, VSC S 196/2-C 200, VSC S 206/4-5 190, VSC S 206/4-5 190 (PL), VSC S 206/4-5 190 (PL) R1, VSC S 206/4-5 190 R1, VSC S DK 126/2-C 180, VSC S DK 126/2-C 180 R1, VSC S DK 126/2-C 180 R3, VSC S DK 196/2-C 200, VSC S DK 196/2-C 200 R1, VSC S DK 196/2-C 200 R3, VSC S INT 126/2-C 180, VSC S INT 126/2-C 180 R1, VSC S INT 126/2-C 180 R3, VSC S INT 196/2-C 200, VSC S INT 196/2-C 200 R1, VSC S INT 196/2-C 200 R3, VU 200/5-5, VU 200/5-5 R1, VU 240/5-5, VU 240/5-5 R1, VU 280/5-5, VU 280/5-5 R1, VUI 246/5-5 (INT II) R6, VUI 256/5-5 (INT I) R6, VUI 306/5-5 (INT II) R6, VUI 346/5-5 (INT II) R6, VUI INT I 256/5-5 R4, VUI INT II 246/5-5 R4, VUI INT II 306/5-5 R4, VUI INT II 346/5-5 R4, VUI TR 346/5-5 F R4, VUW 200/3-5, VUW 200/3-5 R2, VUW 200/5-5, VUW 200/5-5 R1, VUW 202/3-5, VUW 202/3-5 R2, VUW 202/5-5, VUW 206/5-5 (INT I) R6, VUW 240/3-5, VUW 240/3-5 R2, VUW 240/3-5B, VUW 240/5-5, VUW 240/5-5 CZ, VUW 240/5-5 CZ R1, VUW 240/5-5 EU, VUW 240/5-5 EU R1, VUW 240/5-5 R1, VUW 242/3-5, VUW 242/3-5 R2, VUW 242/3-5B, VUW 242/5-3, VUW 242/5-5, VUW 246/5-5 (INT II) R6, VUW 256/5-5 (INT I) R6, VUW 280/3-5, VUW 280/3-5 R2, VUW 280/5-5, VUW 280/5-5 EU, VUW 280/5-5 EU R1, VUW 280/5-5 R1, VUW 282/3-5, VUW 282/3-5 R2, VUW 282/3-5B, VUW 282/5-5, VUW 306/5-5 (INT I) R6, VUW 306/5-5 (INT II) R6, VUW 322/5-5, VUW 346/5-5 (INT II) R6, VUW INT I 206/5-5 R2, VUW INT I 206/5-5 R4, VUW INT I 256/5-5 R2, VUW INT I 256/5-5 R4, VUW INT I 306/5-5 R2, VUW INT I 306/5-5 R4, VUW INT II 246/5-5 R2, VUW INT II 246/5-5 R4, VUW INT II 306/5-5 R2, VUW INT II 306/5-5 R4, VUW INT II 346/5-5 R2, VUW INT II 346/5-5 R4, VUW INT III 246/5-5 R2, VUW INT III 246/5-5 R4, VUW INT III 246/5-5 R6, VUW INT III 306/5-5 R2, VUW INT III 306/5-5 R4, VUW INT III 306/5-5 R6, VUW INT III 346/5-5 R2, VUW INT III 346/5-5 R4, VUW INT III 346/5-5 R6, VUW INT IV 246/5-5 R2, VUW INT IV 246/5-5 R4, VUW INT IV 246/5-5 R6, VUW INT IV 306/5-5 R2, VUW INT IV 306/5-5 R4, VUW INT IV 306/5-5 R6, VUW INT IV 346/5-3 R2, VUW INT IV 346/5-3 R4, VUW INT IV 346/5-5 R2, VUW INT IV 346/5-5 R4, VUW INT IV 346/5-5 R6, VUW OE 236/3-5, VUW OE 236/3-5 R3, VUW OE 236/3-5 R5, VUW OE 296/3-5, VUW OE 296/3-5 R3, VUW OE 296/3-5 R5, VUW OE 346/3-5, VUW OE 346/3-5 R3, VUW OE 346/3-5 R5, VUW TR 236/5-5 F R2, VUW TR 236/5-5 F R4, VUW TR 296/3-5, VUW TR 296/3-5 R3, VUW TR 296/3-5 R5, VUW TR 296/3-5T, VUW TR 296/5-5 F R2, VUW TR 296/5-5 F R4, VUW TR 296/5-5 F R5, VUW TR 346/3-5, VUW TR 346/3-5 R3, VUW TR 346/3-5 R5, VUW TR 346/3-5T, VUW TR 346/5-5 F R2, VUW TR 346/5-5 F R4
