Round Conductor Clamp (universal) Galvanized Steel 30/8 OC

Clamp of round conductor (universal) steel galvanized 30/8 OC.

Provides a reliable cross or longitudinal connection of lightning protection conductors with a diameter of 8-10 mm, which is necessary to create a continuous and efficient path for lightning egress. Specifically designed for lightning protection applications where a secure conductor connection is required.

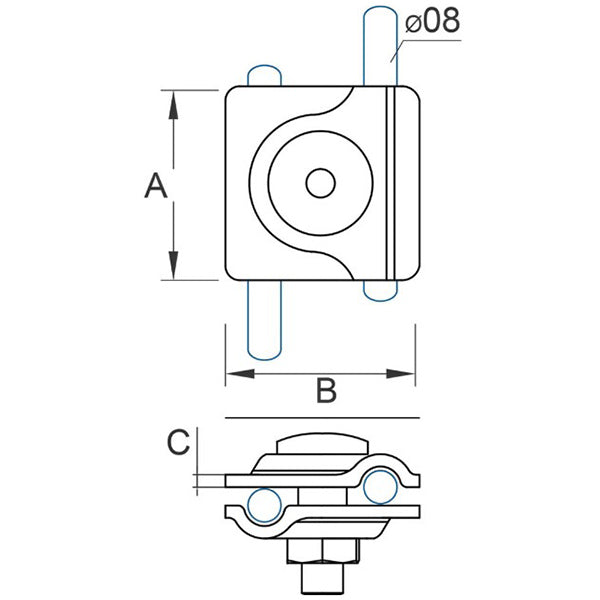

Plate thickness (C): 2 mm.

Plate dimensions (AxB): 47x47 mm.

Fastening: M8x35 bolt.

Made of galvanized steel, which provides a high degree of protection against corrosion and extends the life of the clamp.

Allows for both longitudinal and cross connections, making it a universal tool for mounting. The following connections can be made (A with B):

A) wire diameter from 6 to 10 mm;

B) wire diameter from 6 to 10 mm.

Compatible Brand : Універсальні

Manufacturer : Universal

Type of spare part : Clamp

Diameter, mm : 8-10

Length, mm : 47

Fastening : bolt М8x35

Material : Galvanised steel

Coating : Galvanized

Thickness, mm : 2

Width, mm : 47
