Description

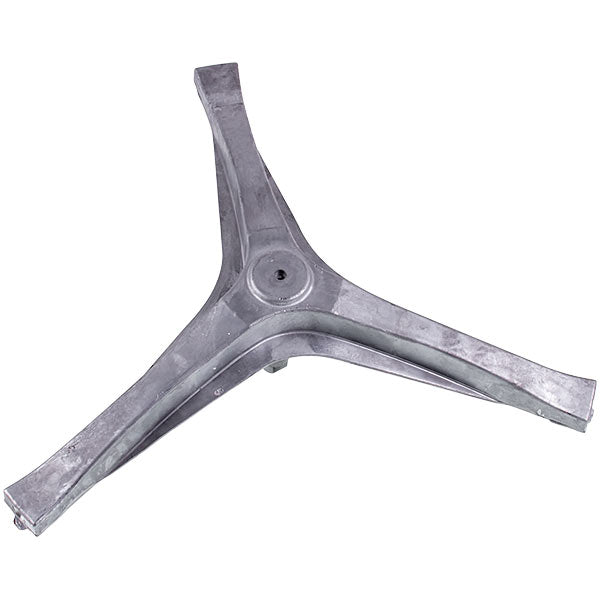

Samsung COD.769 Drum Spider For Washing Machine.
Bearing seat diameter 1 (±0.3 mm): 25 mm.
Bearing seat diameter 2 (±0.3 mm): 30 mm.
Bushing diameter (±0,3 mm): 35 mm.
Shaft length (±2 mm): 100 mm.
Bushing height (±1 mm): 17 mm.
Flat height (±1 mm): 14 mm.
Distance from shaft axis to drum mounting axis: 253 mm.
Distance between bearings (±1 mm): 54.5 mm.
Pulley mount: М12.
Mounting to drum: 3 holes with thread М8.
Bearings: 6205, 6206.
Manufacturer: EBI.
Compatible Brand : Samsung
Manufacturer : EBI
Type of spare part : Cross and support units
The height of the sleeve under the stuffing box, mm (±1 mm) : 17
Flat cut height, mm (±1 mm) : 14
The diameter of the sleeve under the stuffing box, mm (±0,3 mm) : 35
Bearing seat diameter 1, mm (±0.3 mm) : 25
Bearing seat diameter 2, mm (±0.3 mm) : 30
Shaft length, mm (±2 mm) : 100
Mounting to drum : М8
Pulley fastening : M12
Bearings : 6205, 6206
Distance between bearings, mm (±1 mm) : 54.5
Distance from the axis of the shaft to the axis of the drum attac : 253
Manufacturer for customs : EBI
Brands for customs : EBI
|
|
Models, Types, Codes
Suits to models:
WF60F4E0N0W/EO, WF60F4E0N0W/ET, WF60F4E0N0W/LE, WF60F4E0N0W/LV, WF60F4E0N2W, WF60F4E0N2W/EC, WF60F4E0N2W/EE, WF60F4E0N2W/EF, WF60F4E0N2W/EN, WF60F4E0N2W/EO, WF60F4E0N2W/LE, WF60F4E0W0W, WF60F4E0W0W/EO, WF60F4E0W0W/EP, WF60F4E0W0W/ET, WF60F4E0W0W/LE, WF60F4E0W0W/LV, WF60F4E0W2W, WF60F4E0W2W/EC, WF60F4E0W2W/EF, WF60F4E0W2W/EO, WF60F4E0W2W/LE, WF60F4E0W2W/LP, WF60F4E1N2W/EO, WF60F4E1W0W/EO, WF60F4E1W2W, WF60F4E1W2W/EO, WF60F4E2W0W/ET, WF60F4E2W2W, WF60F4E2W2W/EO, WF60F4E2W2W/LE, WF60F4E2W2W/LP, WF60F4E2W2X/EO, WF60F4E2W2X/LE, WF60F4E3W0W/EO, WF60F4E3W2W/EO, WF60F4E4W2W, WF60F4E4W2W/EO, WF60F4E5W2W/EO, WF60F4E5W2W/ET, WF60F4E5W2W/LE, WF60F4E5W2W/LP, WF60F4E5W2X, WF60F4E5W2X/LE, WF60F4EBW2W, WF60F4EBW2W/EO, WF60F4ECN2W/EO, WF60F4ECW0W/EO, WF60F4ECW2W, WF60F4ECW2W/EO, WF60F4ECW2W/ET, WF60F4ECW2W/LE, WF60F4EDW0W, WF60F4EDW2W/EO, WF60F4EDW2W/ET, WF60F4EEW0W/EO, WF60F4EEW2W/EO, WF60F4EFW0W/EO, WF60F4EFW0W/LE, WF60F4EFW2W/EO, WF60F4EFW2W/LE, WF60F4EFW2W/WS, WF60F4ELW2W/EO, WF60F4ELW2W/LE, WF61F4E0N2W/EN, WF62F4E1N2W, WF6AF4E0W2W, WF6EF4E0W2W, WF6EF4E5W2W, WF6RF4E2W0W, WW60J3080LW1, WW60J3083LW, WW60J3083LW/EO, WW60J3280LW1, WW60J3283LW, WW60J3283LW/EC, WW60J3283LW/EF, WW60J3283LW/EO, WW60J3283LW/ET, WW60J4060LW1EO, WW60J4060LW1LE, WW60J4060LW1ZE, WW60J4063LW1EO, WW60J4210HW1LE, WW60J4210JW1LE, WW60J4210LW1LE, WW60J4210LW1ZE, WW60J4213HW1EO, WW60J4213LW1EO, WW60J4260HW1EO, WW60J4260LW1LE, WW60J4263HW1EO, WW60J42A0LW, WW61J3283LW, WW70K42101W, WW70K42101W/LE, WW70K42101W/ZE, WW70K42106W, WW70K42106W/LE, WW70K42106W/ZE, WW70K42107W, WW70K42136W, WW70K42E01S, WW70K42E01W, WW70K52108W, WW70K52109W, WW70K62101W, WW70K62106W, WW70K62108W, WW70K62109W, WW70K62E00S, WW70K62E00W, WW70K62E09S, WW70K62E09W, WW70K62E69S, WW70K62E69W, WW70R421XSSD, WW70R421XTWD, WW70R42PXRWDLP, WW70R62LATWD, WW70R62LATXD, WW70R62LVSWD, WW70R62LVSXD, WW70R62LVTWD, WW70R62LVTXD, WW80K42E01W, WW80K42E01WDLD, WW80K42E06W, WW80K42E07S, WW80K42E07SDLD, WW80K42E07W, WW80K52E61S, WW80K52E61SDBY, WW80K52E61W, WW80K52E61WDBY, WW80K62E01S, WW80K62E01W, WW80K62E07S, WW80K62E07W, WW80K62E61S, WW80K62E61W, WW80R421HDW, WW80R421HEW, WW80R421HFW, WW80R421HFW/ET, WW80R421HFX, WW80R42LHDWD, WW80R42LHESD, WW80R42LHFWD, WW80R42LHFXD, WW80R42LXESD, WW80R42LXEWD, WW80R42LXFSD, WW80R42LXFWD, WW80R52LCFSD, WW80R52LCFWD, WW80R62LAFWD, WW80R62LAFXD, WW80R62LVEWD, WW80R62LVEXD, WW80R62LVFWD, WW80R62LVFXD
Suits to codes:
WF60F4E0N0W/EO, WF60F4E0N0W/ET, WF60F4E0N0W/LE, WF60F4E0N0W/LV, WF60F4E0N2W/EC, WF60F4E0N2W/EE, WF60F4E0N2W/EF, WF60F4E0N2W/EN, WF60F4E0N2W/EO, WF60F4E0N2W/LE, WF60F4E0N2W/LV, WF60F4E0W0W/EO, WF60F4E0W0W/EP, WF60F4E0W0W/ET, WF60F4E0W0W/LE, WF60F4E0W0W/LP, WF60F4E0W0W/LV, WF60F4E0W0W/UA, WF60F4E0W2W/EC, WF60F4E0W2W/EF, WF60F4E0W2W/EO, WF60F4E0W2W/LE, WF60F4E0W2W/LP, WF60F4E0W2W/UA, WF60F4E1N2W/EO, WF60F4E1W0W/EO, WF60F4E1W2W/EO, WF60F4E1W2W/LP, WF60F4E2W0W/ET, WF60F4E2W2W/EO, WF60F4E2W2W/LE, WF60F4E2W2W/LP, WF60F4E2W2W/UA, WF60F4E2W2X/EO, WF60F4E2W2X/LE, WF60F4E3W0W/EO, WF60F4E3W2W/EO, WF60F4E4W2W/EO, WF60F4E4W2W/LP, WF60F4E5W2W/EO, WF60F4E5W2W/ET, WF60F4E5W2W/LE, WF60F4E5W2W/LP, WF60F4E5W2X/LE, WF60F4E5W2X/LP, WF60F4EBW2W/EO, WF60F4EBW2W/LP, WF60F4ECN2W/EO, WF60F4ECW0W/EO, WF60F4ECW2W/EO, WF60F4ECW2W/ET, WF60F4ECW2W/LE, WF60F4ECW2W/LP, WF60F4EDW0W/ET, WF60F4EDW2W/EO, WF60F4EDW2W/ET, WF60F4EEW0W/EO, WF60F4EEW2W/EO, WF60F4EFW0W/EO, WF60F4EFW0W/LE, WF60F4EFW2W/EO, WF60F4EFW2W/LE, WF60F4EFW2W/WS, WF60F4ELW2W/EO, WF60F4ELW2W/LE, WF61F4E0N2W/EN, WF62F4E1N2W/EE, WF6AF4E0W2W/EG, WF6EF4E0W2W/LP, WF6EF4E0W2W/UA, WF6EF4E5W2W/LP, WF6RF4E2W0W/LP, WF6RF4E2W0W/UA, WW60J3080LW1LE, WW60J3083LW/EO, WW60J3083LW/LE, WW60J3280LW1LE, WW60J3283LW/EC, WW60J3283LW/EE, WW60J3283LW/EF, WW60J3283LW/EG, WW60J3283LW/EO, WW60J3283LW/ET, WW60J3283LW/LE, WW60J4060LW1EO, WW60J4060LW1LE, WW60J4060LW1ZE, WW60J4063LW1EO, WW60J4210HW1LE, WW60J4210JW1LE, WW60J4210LW1LE, WW60J4210LW1ZE, WW60J4213HW1EO, WW60J4213LW1EO, WW60J4260HW1EO, WW60J4260LW1LE, WW60J4263HW1EO, WW60J42A0LW/EG, WW61J3283LW/EN, WW70K42101W/EO, WW70K42101W/LE, WW70K42101W/ZE, WW70K42101WDUA, WW70K42106W/EO, WW70K42106W/ET, WW70K42106W/LE, WW70K42106W/ZE, WW70K42106WDUA, WW70K42107W/EO, WW70K42136W/EO, WW70K42E01SDLD, WW70K42E01WDLD, WW70K52108W/EO, WW70K52109W/EO, WW70K52109W/LE, WW70K52109W/ZE, WW70K62101WDUA, WW70K62106WDUA, WW70K62108WDUA, WW70K62109WDUA, WW70K62E00SDLP, WW70K62E00WDLP, WW70K62E09SDLD, WW70K62E09WDLD, WW70K62E09WDLP, WW70K62E69SDBY, WW70K62E69SDLD, WW70K62E69SDLP, WW70K62E69WDLD, WW70K62E69WDLP, WW70K62E69WDUA, WW70R421XSSDLD, WW70R421XTWDLD, WW70R421XTWDUA, WW70R421XTXDUA, WW70R42PXRWDLP, WW70R62LATWDLD, WW70R62LATWDLP, WW70R62LATWDUA, WW70R62LATXDLD, WW70R62LATXDLP, WW70R62LATXDUA, WW70R62LVSWDLP, WW70R62LVSXDLP, WW70R62LVTWDLP, WW70R62LVTXDLP, WW80K42E01WDLD, WW80K42E01WDLP, WW80K42E06WDLP, WW80K42E07SDLD, WW80K42E07SDLP, WW80K42E07WDLP, WW80K52E61SDBY, WW80K52E61SDLP, WW80K52E61WDBY, WW80K52E61WDLP, WW80K62E01SDLD, WW80K62E01WDLD, WW80K62E01WDLP, WW80K62E07SDLP, WW80K62E07WDLP, WW80K62E61SDLD, WW80K62E61SDLP, WW80K62E61WDLP, WW80R421HDW/EO, WW80R421HDW/LE, WW80R421HEW/EO, WW80R421HFW/EO, WW80R421HFW/ET, WW80R421HFW/LE, WW80R421HFX/EO, WW80R421HFX/LE, WW80R42LHDWDLP, WW80R42LHESDLP, WW80R42LHFWDLP, WW80R42LHFWDUA, WW80R42LHFXDUA, WW80R42LXESDLD, WW80R42LXESDLP, WW80R42LXEWDLP, WW80R42LXFSDLP, WW80R42LXFWDLD, WW80R42LXFWDLP, WW80R52LCFSDLP, WW80R52LCFWDLP, WW80R62LAFWDLP, WW80R62LAFXDLD, WW80R62LAFXDLP, WW80R62LVEWDLP, WW80R62LVEXDLP, WW80R62LVFWDLD, WW80R62LVFWDLP, WW80R62LVFXDLP
If you can't find your model in our Store list - write us an email letter with full Model Number, Type or Ref of item You are interesting in we offer You best service and price! Our online store sells spare parts and accessories for small and large household appliances for such brands like Electrolux, Braun, Zanussi, Samsung, LG, Philips, Gorenje, Thomas, Miele, Whirlpool, Ariston, Indesit and many other famous brands of household appliances! We have over 15,000 items on stock that can be sold both retail and wholesale. We can offer best service to any country of the world! If You need to know something more than shown in my store just ask!!! Looking for a long time cooperation!
|
|
