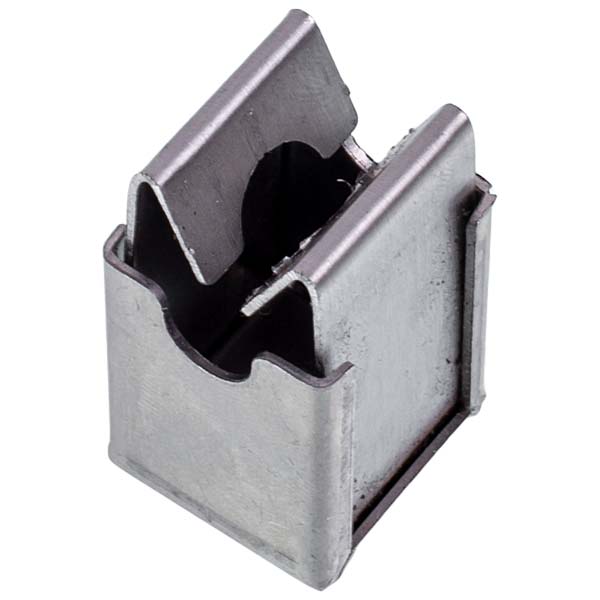

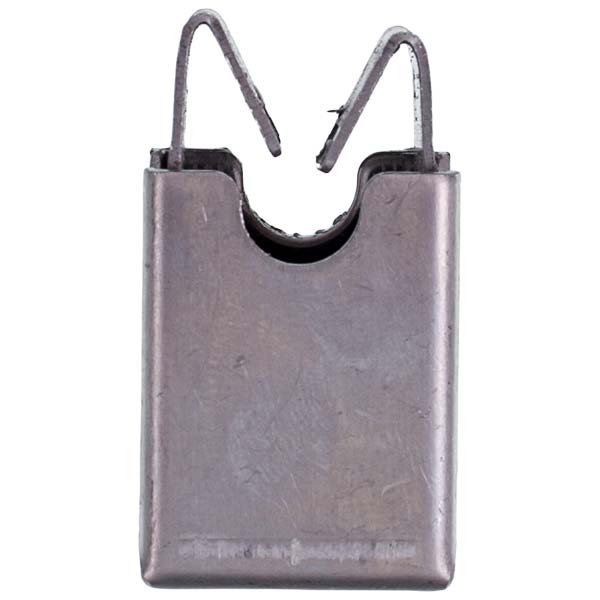

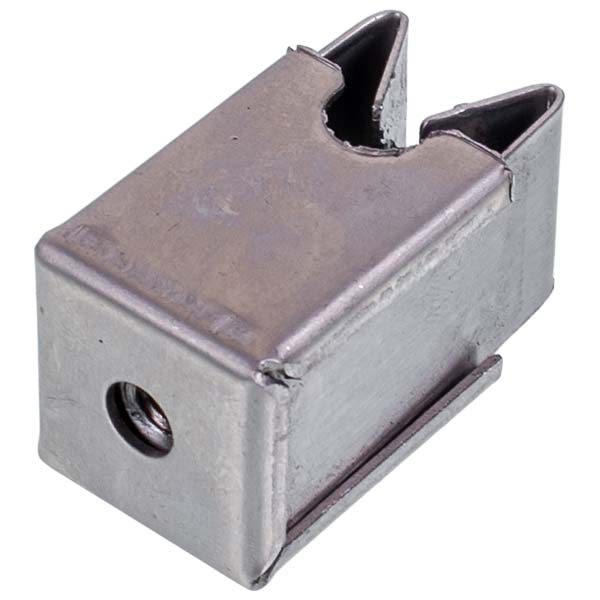

The wire holder 01/1 Ni provides reliable fixation of the wire on metal roofs such as metal tile, corrugated board or tinplate, which is important for the stability and durability of the lightning protection system.
It is designed for laying wire with a diameter of 8 mm and provides a reliable connection and fixation of conductive elements of the lightning protection system, contributing to the effective diversion of lightning to the ground. Protects the building and its occupants by ensuring correct and safe installation of lightning protection system elements.
It is characterized by easy and convenient installation, and due to its height the holder does not come into contact with the protrusions of metal roofing or metal profile.
Material: stainless steel.

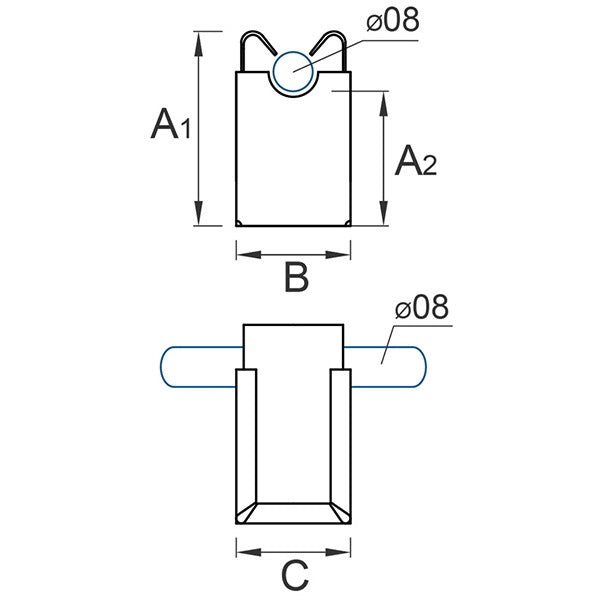

Height A1/A2: 41/24 mm.
Base dimension B/C: 23x24 mm.
Fastening (inner hole F): М6.
Wire diameter: 8 mm.
Compatible Brand : Універсальні
Manufacturer : Universal
Type of spare part : Holder
Height, mm : 41
Diameter, mm : 8
Length, mm : 23
Material : Stainless steel
Width, mm : 24
