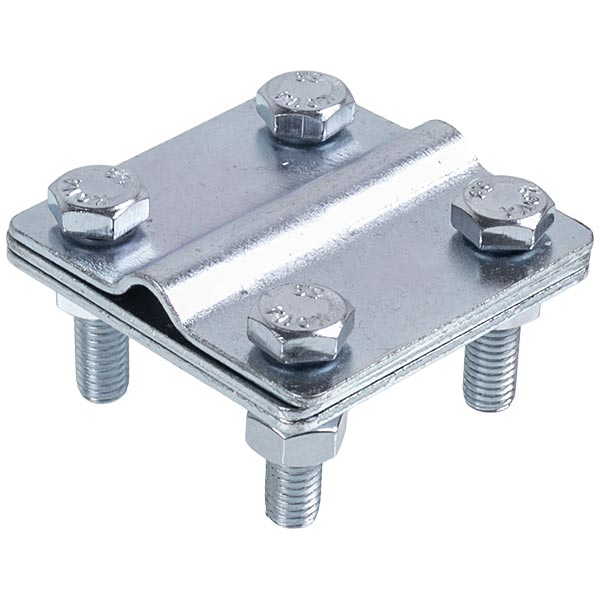

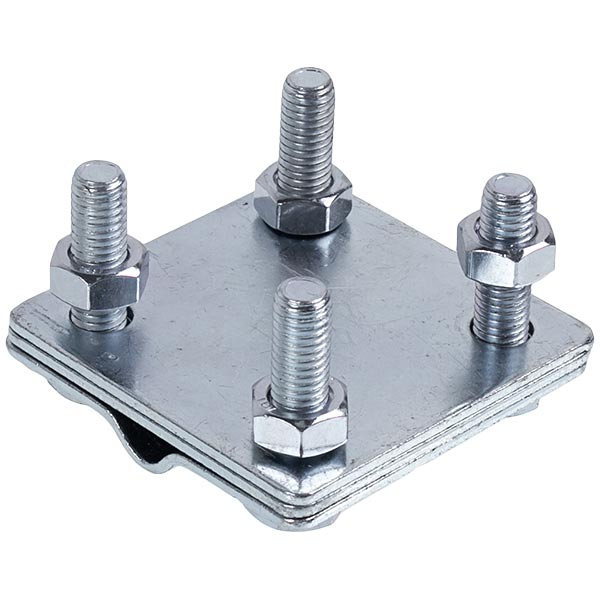

Strip/wire clamp D=8-10mm steel galvanized 04/8.3 OC

Strip/wire clamp galvanized steel galvanized 04/8.3 OC.

Designed for reliable connection of lightning conductor wire with a diameter of 8 to 10 mm (galvanized or aluminum) and strip with a width of up to 30 mm. It provides strong and stable fastening due to its special design and galvanized galvanization.

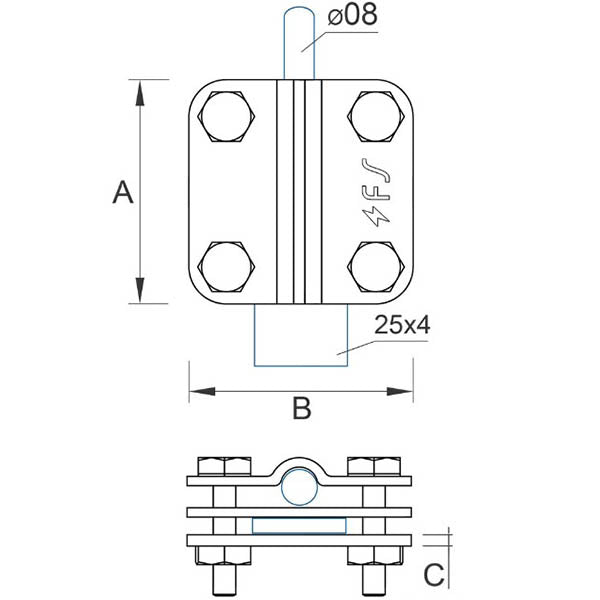

The clamp consists of one plate with a bend for a diameter of 8-10 mm and two flat plates for better fixation and contact.

Number of plates: 3.

Plate thickness (C): 2 mm.

Plate dimensions (AxB): 60 x 60 mm.

Fixing: 4 bolts M8x30.

Material: galvanized steel, providing high corrosion resistance and durability.

Allows both longitudinal and cross connections, making it a universal tool for mounting. The following connections can be made (A with B):

A) wire with a diameter of 6 to 10 mm;

B) strip 25x4 mm, strip 30x3 mm.

Compatible Brand : Універсальні

Manufacturer : Universal

Type of spare part : Clamp

Diameter, mm : 8-10

Length, mm : 60

Fastening : bolts M8x30

Material : Galvanised steel

Coating : Galvanized

Thickness, mm : 2

Width, mm : 60
