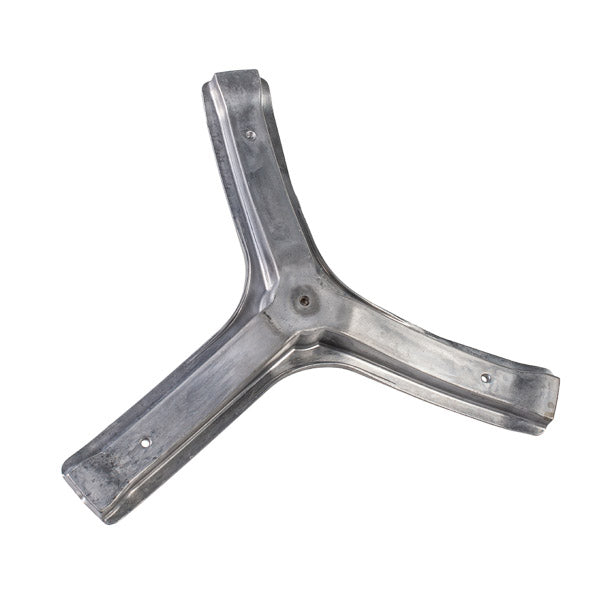

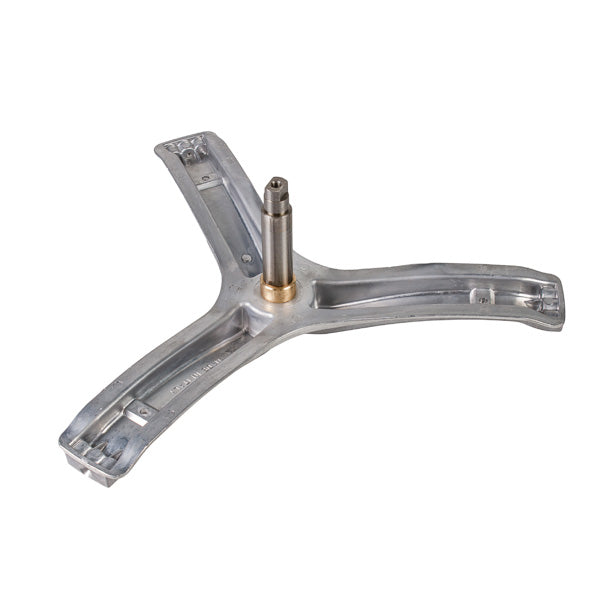

EBI Washing Machine Drum Spider Compatible with Vestel COD.767

Vestel Washing Machine Drum Spider COD.767.

Bearing seat diameter 1 (±0.3 mm): 20 mm.

Bearing seat diameter 2 (±0.3 mm): 25 mm.

Bushing diameter (±0,3 mm): 30.5 mm.

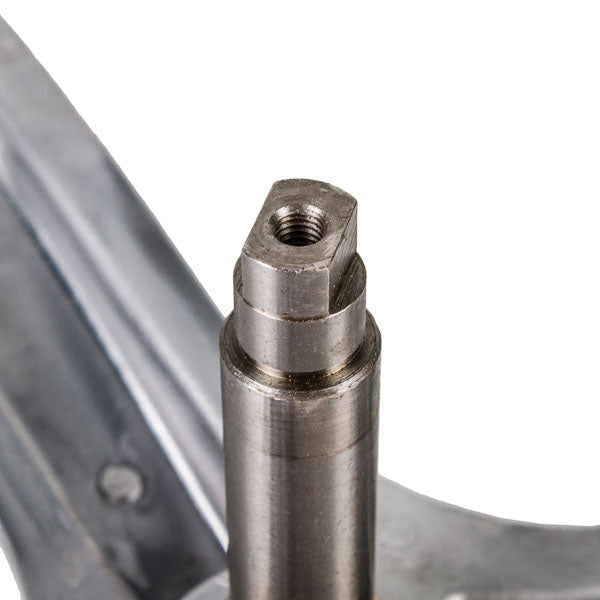

Shaft length (±2 mm): 111 mm.

Bushing height (±1 mm): 15,7 mm.

Flat height (±1 mm): 10,3 mm.

Distance from shaft axis to drum mounting axis: 235.5 mm.

Distance between bearings (±1 mm): 72.3 mm.

Pulley mount: М8.

Mounting to drum: 3 holes with thread М6.

Bearings: 6204, 6205.

Manufacturer: EBI.

Compatible Brand : Vestel

Manufacturer : EBI

Type of spare part : Cross and support units

The height of the sleeve under the stuffing box, mm (±1 mm) : 15.7

Flat cut height, mm (±1 mm) : 10.3

The diameter of the sleeve under the stuffing box, mm (±0,3 mm) : 30.5

Bearing seat diameter 1, mm (±0.3 mm) : 20

Bearing seat diameter 2, mm (±0.3 mm) : 25

Shaft length, mm (±2 mm) : 111

Mounting to drum : М6

Pulley fastening : М8

Bearings : 6204, 6205

Distance between bearings, mm (±1 mm) : 72.3

Distance from the axis of the shaft to the axis of the drum attac : 235.5

Manufacturer for customs : EBI

Brands for customs : EBI
