Description

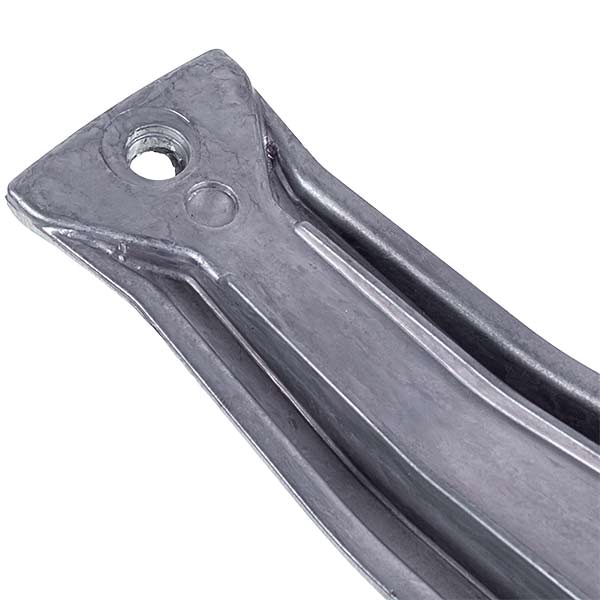

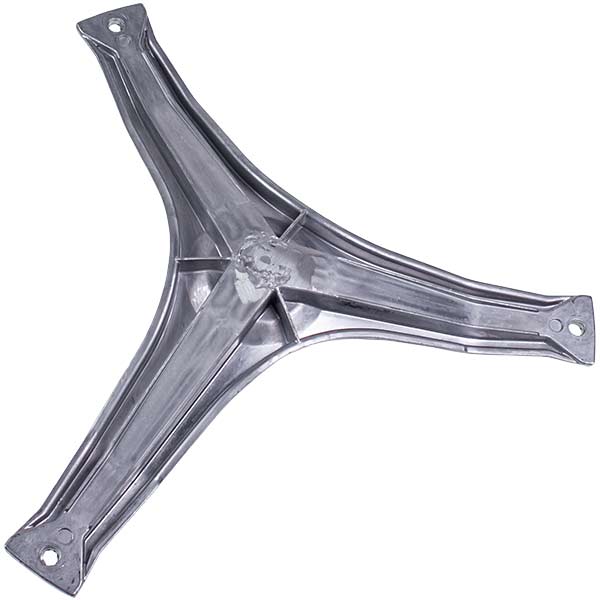

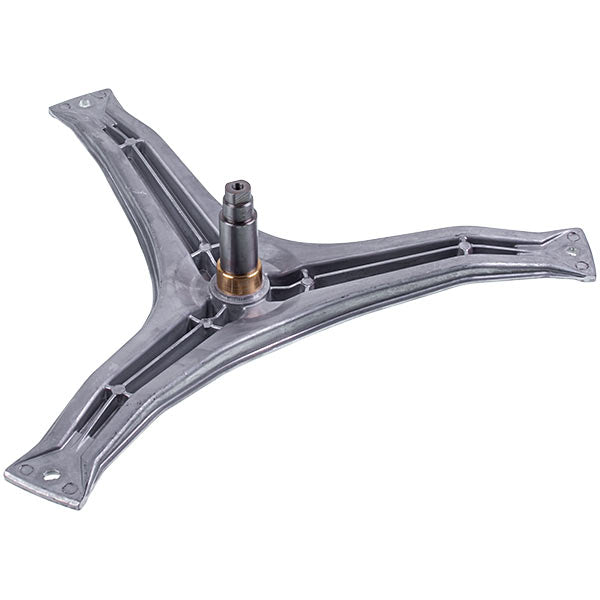

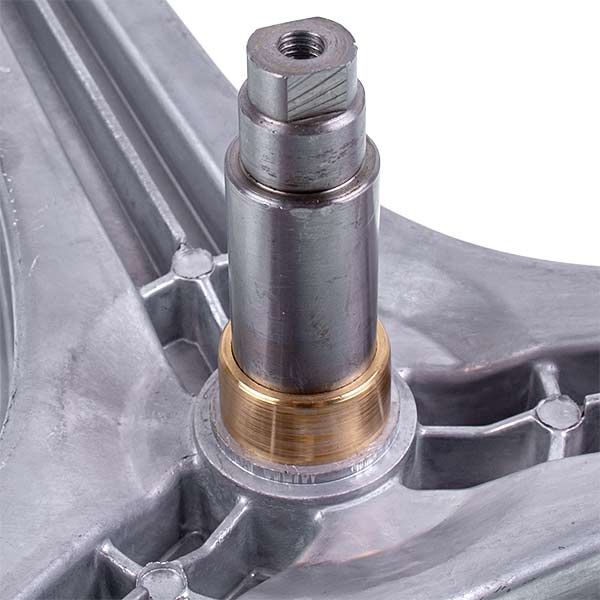

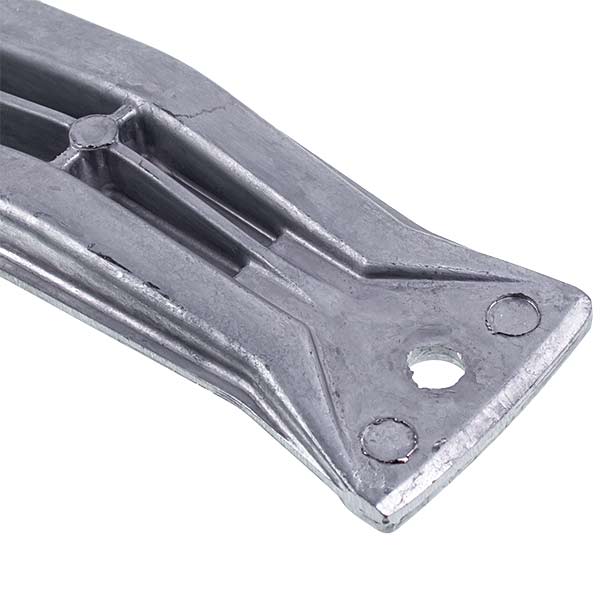

Washing Machine Drum Spider & Shaft Bosch COD.782.
Bearing seat diameter 1 (±0.3 mm): 25 mm.
Bearing seat diameter 2 (±0.3 mm): 20 mm.
Bushing diameter (±0,3 mm): 30 mm.
Shaft length (±2 mm): 79 mm.
Distance from shaft axis to drum mounting axis: 238 mm.
Pulley mount: М8.
Mounting to drum: screw M10 (3 pcs).
Bearings: 6204, 6205.
Manufacturer: EBI.
Compatible Brand : Siemens, Bosch
Manufacturer : EBI
Brands for customs : EBI
Type of spare part : Cross and support units
The diameter of the sleeve under the stuffing box, mm (±0,3 mm) : 30
Bearing seat diameter 1, mm (±0.3 mm) : 25
Bearing seat diameter 2, mm (±0.3 mm) : 20
Shaft length, mm (±2 mm) : 79
Mounting to drum : М10
Pulley fastening : М8
Bearings : 6204, 6205
Manufacturer for customs : EBI
Distance from the axis of the shaft to the axis of the drum attac : 238
|
|
Models, Types, Codes
Suits to models:
WLF12060IT/16, WLF12060IT/18, WLF12060IT/21, WLF12060IT/23, WLF16060BY/16, WLF16060BY/18, WLF16060IT/16, WLF16060IT/18, WLF16060IT/21, WLF16060OE/16, WLF16060OE/18, WLF16062BY/18, WLF16062BY/21, WLF16062BY/23, WLF16062OE/18, WLF16170CE/18, WLF16170CE/21, WLF16170CE/23, WLF16182CE/18, WLF16182CE/21, WLF16182CE/23, WLF16260BY/16, WLF16260OE/16, WLF16260OE/18, WLF16260PL/16, WLF16260PL/18, WLF16261OE/18, WLF16261OE/21, WLF16261OE/23, WLF16261PL/18, WLF16261PL/21, WLF20060BY/16, WLF20060BY/18, WLF20060OE/16, WLF20060OE/18, WLF20060PL/16, WLF20060PL/18, WLF20061BY/16, WLF20061BY/18, WLF20061PL/18, WLF20062BY/18, WLF20062BY/21, WLF20062BY/23, WLF20062OE/18, WLF20062PL/18, WLF20062PL/21, WLF20062PL/23, WLF20170CE/18, WLF20170CE/21, WLF20170CE/23, WLF20171CE/01, WLF20181CE/18, WLF20181CE/21, WLF20181CE/23, WLF20182CE/23, WLF20260BY/16, WLF20260BY/18, WLF20260OE/16, WLF20260OE/18, WLF20260PL/16, WLF20260PL/18, WLF20261BY/16, WLF20261BY/18, WLF20261OE/18, WLF20261OE/21, WLF20261OE/23, WLF20261PL/18, WLF20261PL/21, WLF20261PL/23, WLF20262BY/18, WLF20262BY/21, WLF20262BY/23, WLF20271CE/01, WLF20271CE/02, WLF20281CE/01, WLF20281CE/02, WLG16060UA/01, WLG16060UA/02, WLG16060UA/03, WLG20060OE/01, WLG20060OE/02, WLG20060OE/03, WLG20060OE/04, WLG20060OE/05, WLG20060OE/06, WLG20060OE/07, WLG20060OE/08, WLG20060OE/09, WLG20060OE/10, WLG20060UA/01, WLG20060UA/02, WLG20060UA/03, WLG20061OE/01, WLG20061OE/02, WLG20061OE/03, WLG20061OE/04, WLG20061OE/05, WLG20061OE/06, WLG20061OE/07, WLG20061OE/08, WLG20061UA/01, WLG20061UA/02, WLG20061UA/03, WLG20160BL/01, WLG20160BY/01, WLG20160BY/02, WLG20160BY/03, WLG20160BY/04, WLG20160BY/05, WLG20160OE/01, WLG20160OE/02, WLG20160OE/03, WLG20160OE/04, WLG20160OE/05, WLG20160OE/06, WLG20160OE/07, WLG20160OE/08, WLG20160UA/01, WLG20160UA/03, WLG20162OE/01, WLG20162OE/03, WLG20162OE/04, WLG20162OE/05, WLG20162OE/06, WLG20162OE/07, WLG20162OE/08, WLG20165IT/01, WLG20165IT/03, WLG20165IT/04, WLG20165OE/01, WLG20165OE/02, WLG20165OE/03, WLG20165OE/04, WLG20165OE/05, WLG20165UA/01, WLG20240OE/01, WLG20240OE/02, WLG20240OE/03, WLG20240OE/04, WLG20240OE/05, WLG20240OE/06, WLG20240OE/07, WLG20240OE/08, WLG20240OE/09, WLG20240OE/10, WLG20240UA/01, WLG20260BL/01, WLG20260BL/02, WLG20260BY/01, WLG20260BY/02, WLG20260BY/03, WLG20260BY/04, WLG20260BY/05, WLG20260OE/01, WLG20260OE/03, WLG20260OE/04, WLG20260OE/05, WLG20260OE/06, WLG20260OE/07, WLG20260OE/08, WLG20260UA/01, WLG20260UA/03, WLG20261OE/01, WLG20261OE/03, WLG20261OE/04, WLG20261OE/05, WLG20261OE/06, WLG20261OE/07, WLG20261OE/08, WLG20261OE/09, WLG20265OE/01, WLG20265OE/02, WLG20265OE/03, WLG20265OE/04, WLG20265OE/05, WLG20265OE/06, WLG20265PL/01, WLG20265PL/02, WLG20265PL/03, WLG20265PL/04, WLG20265PL/05, WLG20265PL/06, WLG20265PL/07, WLG2026EPL/01, WLG2026EPL/03, WLG2026EPL/04, WLG2026EPL/05, WLG2026FPL/01, WLG2026FPL/02, WLG2026FPL/03, WLG2026FPL/04, WLG2026FPL/05, WLG2026FPL/06, WLG2026FPL/07, WLG2026KPL/01, WLG2026KPL/02, WLG2026KPL/03, WLG2026KPL/04, WLG2026KPL/05, WLG2026KPL/06, WLG2026KPL/07, WLG2026PBL/01, WLG2026PBL/02, WLG2026PPL/01, WLG2026PPL/02, WLG2026PPL/03, WLG2026PPL/04, WLG2026PPL/05, WLG2026PPL/06, WLG2026SOE/01, WLG2026SOE/02, WLG2026SOE/03, WLG2026SOE/04, WLG2026SOE/05, WLG2026SOE/06, WLX12160IT/16, WLX12160IT/17, WLX12160IT/18, WLX12160IT/20, WLX12160IT/21, WLX12160IT/23, WLX16160BY/16, WLX16160BY/17, WLX16160BY/18, WLX16160BY/20, WLX16160BY/21, WLX16160BY/23, WLX16160IT/16, WLX16160IT/17, WLX16160IT/18, WLX16160IT/20, WLX16160IT/21, WLX16160IT/23, WLX16160OE/16, WLX16160OE/17, WLX16160OE/18, WLX16160PL/16, WLX16160PL/17, WLX16160PL/18, WLX16161OE/18, WLX16161OE/20, WLX16162OE/20, WLX16162OE/21, WLX16162OE/23, WLX16420IT/16, WLX16420IT/17, WLX16420IT/18, WLX16420IT/20, WLX16420IT/21, WLX16460PL/16, WLX16460PL/17, WLX16460PL/18, WLX16461PL/18, WLX16461PL/20, WLX16462PL/20, WLX16462PL/21, WLX16462PL/23, WLX20160/16, WLX20160/17, WLX20160/18, WLX20160BY/16, WLX20160BY/17, WLX20160BY/18, WLX20160FF/16, WLX20160FF/17, WLX20160FF/18, WLX20160FF/21, WLX20160FF/23, WLX20160FF/25, WLX20160OE/16, WLX20160OE/17, WLX20160OE/18, WLX20161OE/18, WLX20161PL/18, WLX20161PL/21, WLX20161PL/23, WLX20162OE/18, WLX20162OE/21, WLX20162OE/23, WLX20163OE/23, WLX20360BY/16, WLX20360BY/18, WLX20360BY/19, WLX20360OE/16, WLX20360OE/18, WLX20360OE/19, WLX20360PL/16, WLX20360PL/18, WLX20360PL/19, WLX20361BY/19, WLX20361OE/19, WLX20361PL/19, WLX20362BY/19, WLX20362BY/21, WLX20362BY/23, WLX20362BY/24, WLX20362OE/19, WLX20362OE/21, WLX20362OE/22, WLX20362OE/23, WLX20362PL/19, WLX20362PL/21, WLX20362PL/23, WLX20362PL/24, WLX20363OE/23, WLX20363OE/24, WLX20364OE/01, WLX2036KOE/01, WLX20370CE/19, WLX20370CE/21, WLX20370CE/23, WLX20370CE/24, WLX20420IT/16, WLX20420IT/17, WLX20420IT/18, WLX20420IT/21, WLX20420IT/23, WLX20420IT/24, WLX20441PL/18, WLX20444OE/01, WLX2044COE/01, WLX2045FOE/01, WLX20460BY/16, WLX20460BY/17, WLX20460BY/18, WLX20460OE/16, WLX20460OE/17, WLX20460OE/18, WLX20460PL/16, WLX20460PL/17, WLX20460PL/18, WLX20461BY/18, WLX20461OE/18, WLX20461PL/18, WLX20462BY/18, WLX20462BY/21, WLX20462BY/23, WLX20462BY/24, WLX20462OE/18, WLX20462OE/21, WLX20462OE/22, WLX20462OE/23, WLX20462PL/18, WLX20462PL/21, WLX20462PL/23, WLX20462PL/24, WLX20463OE/23, WLX20463OE/24, WLX2046KPL/16, WLX2046KPL/17, WLX2046KPL/18, WLX2047KPL/18, WLX20480OE/24, WLX2048KPL/18, WLX2048KPL/21, WLX2048KPL/23, WLX2048KPL/24, WS08X160PL/16, WS08X160PL/17, WS08X460IT/16, WS08X460IT/17, WS08X460IT/18, WS08X460IT/20, WS08X460IT/21, WS08X460IT/23, WS08X460PL/16, WS08X460PL/18, WS10F060BY/16, WS10F060BY/18, WS10F062PL/21, WS10F260BY/16, WS10F260BY/18, WS10F260IT/16, WS10F260IT/18, WS10F260OE/16, WS10F260OE/18, WS10F260PL/16, WS10F260PL/18, WS10F261OE/18, WS10F261OE/21, WS10F261OE/23, WS10F261PL/18, WS10F261PL/21, WS10F261PL/23, WS10F26RPL/16, WS10F26RPL/18, WS10F27RPL/18, WS10F27RPL/21, WS10F27RPL/23, WS10G060HK/01, WS10G060HK/02, WS10G140OE/01, WS10G140OE/03, WS10G140OE/04, WS10G140OE/05, WS10G140OE/06, WS10G140OE/07, WS10G140OE/08, WS10G140OE/09, WS10G140OE/10, WS10G140UA/01, WS10G140UA/03, WS10G140UA/04, WS10G160OE/01, WS10G160OE/03, WS10G160OE/04, WS10G160OE/05, WS10G160OE/06, WS10G160OE/07, WS10G160OE/08, WS10G240OE/01, WS10G240OE/03, WS10G240OE/04, WS10G240OE/05, WS10G240OE/06, WS10G240OE/07, WS10G240OE/08, WS10G240OE/09, WS10G240OE/10, WS10G240OE/11, WS10X160/16, WS10X160/17, WS10X160OE/16, WS10X160OE/17, WS10X160OE/18, WS10X160PL/16, WS10X160PL/17, WS10X161OE/18, WS10X161OE/21, WS10X161OE/23, WS10X163OE/23, WS10X34AOE/16, WS10X34AOE/18, WS10X34AOE/19, WS10X35AOE/19, WS10X360BY/16, WS10X360BY/18, WS10X360BY/19, WS10X360PL/16, WS10X360PL/18, WS10X360PL/19, WS10X361PL/19, WS10X362PL/19, WS10X362PL/21, WS10X362PL/23, WS10X36AOE/19, WS10X36AOE/21, WS10X36AOE/22, WS10X36AOE/23, WS10X37AOE/23, WS10X420IT/16, WS10X420IT/17, WS10X420IT/18, WS10X420IT/21, WS10X420IT/23, WS10X440OE/16, WS10X440OE/17, WS10X440OE/18, WS10X45AOE/18, WS10X460BY/16, WS10X460BY/17, WS10X460BY/18, WS10X460PL/16, WS10X460PL/17, WS10X460PL/18, WS10X461BY/18, WS10X461PL/18, WS10X462BY/18, WS10X462BY/21, WS10X462BY/23, WS10X462PL/18, WS10X462PL/21, WS10X462PL/23, WS10X46AOE/18, WS10X46AOE/21, WS10X46AOE/22, WS10X46AOE/23, WS10X46APL/18, WS10X46APL/21, WS10X46APL/23, WS10X47AOE/23
