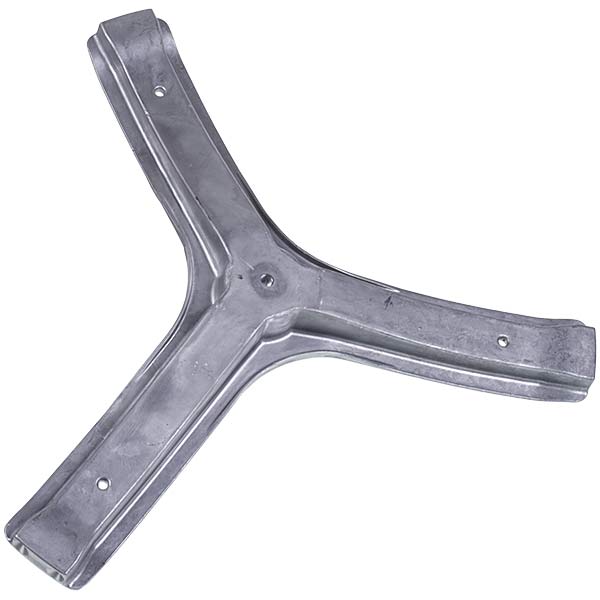

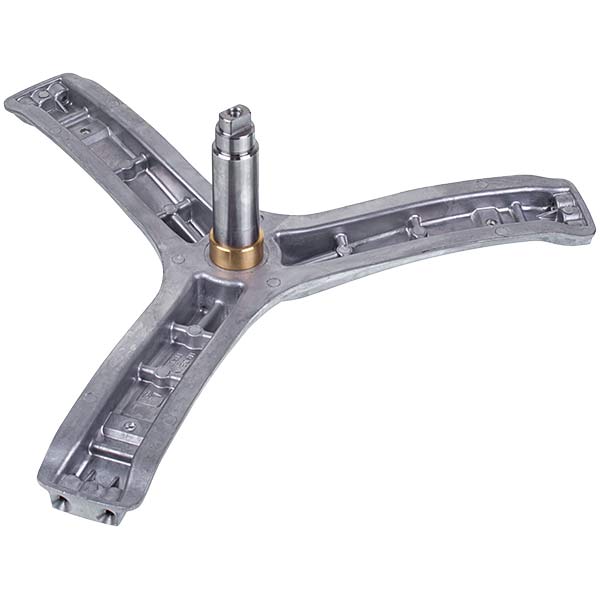

Washing Machine Drum Spider Compatible with Vestel COD.768

Washing Machine Drum Spider Vestel COD.768.

Bearing seat diameter 1 (±0.3 mm): 30 mm.

Bearing seat diameter 2 (±0.3 mm): 25 mm.

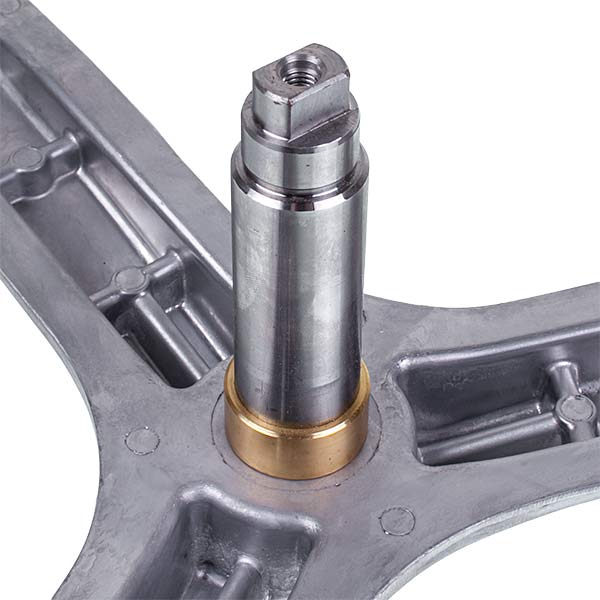

Bushing diameter (±0,3 mm): 35 mm.

Shaft length (±2 mm): 111 mm.

Distance from shaft axis to drum mounting axis: 237 mm.

Pulley mount: М8.

Mounting to drum: М6 screw from the end face.

Bearings: 6205, 6206.

Manufacturer : EBI

Brands for customs : EBI

Type of spare part : Cross and support units

The diameter of the sleeve under the stuffing box, mm (±0,3 mm) : 35

Bearing seat diameter 1, mm (±0.3 mm) : 30

Bearing seat diameter 2, mm (±0.3 mm) : 25

Shaft length, mm (±2 mm) : 111

Mounting to drum : М6

Pulley fastening : М8

Bearings : 6205, 6206

Manufacturer for customs : EBI

Distance from the axis of the shaft to the axis of the drum attac : 237
