Washing Machine Drum Spider Compatible with Vestel COD.785 EBI L=123mm D=17/25/30.1mm

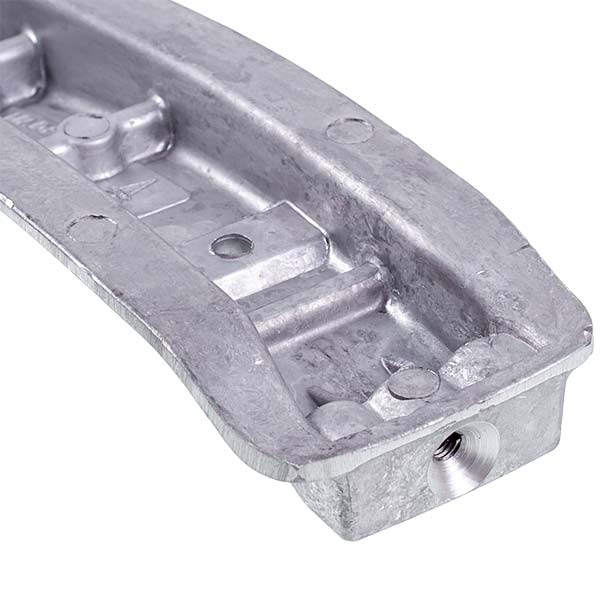

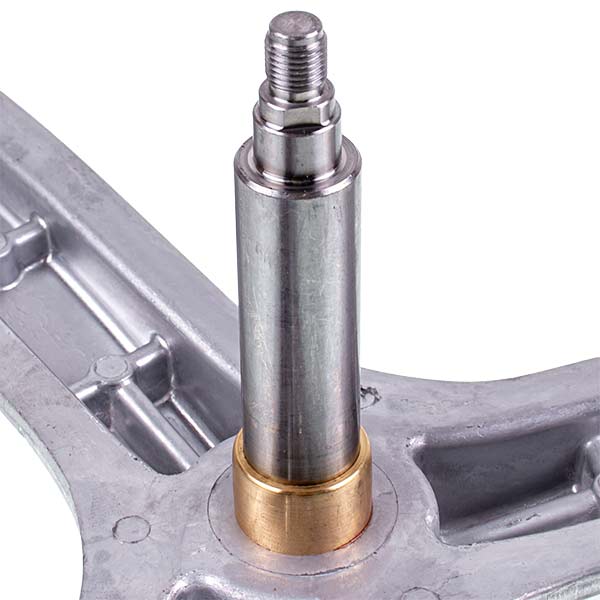

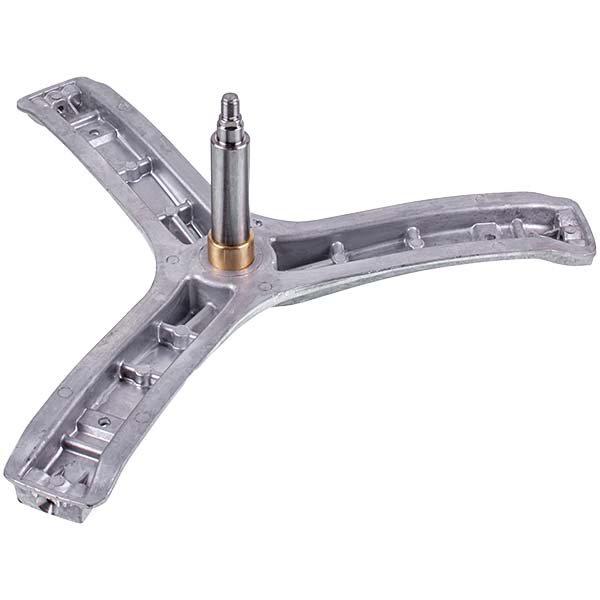

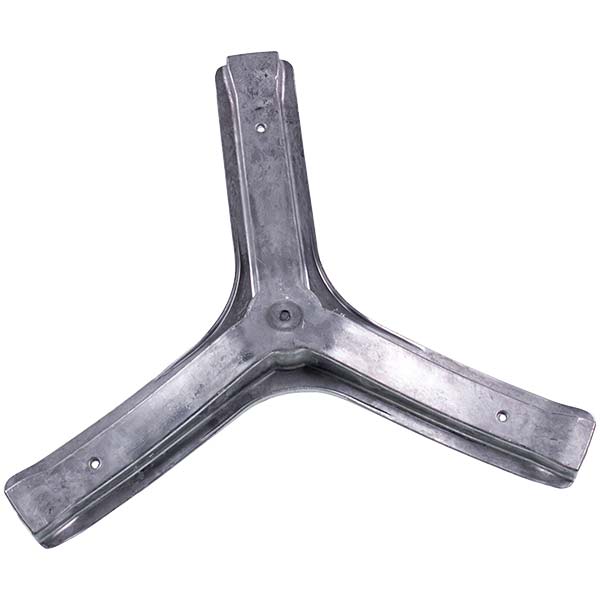

Washing Machine Drum Spider Vestel COD.785.

Bearing seat diameter 1 (±0.3 mm): 17 mm.

Bearing seat diameter 2 (±0.3 mm): 25 mm.

Bushing diameter (±0,3 mm): 30,1 mm.

Shaft length (±2 mm): 123 mm.

Bushing height (±1 mm): 18,2 mm.

Distance from shaft axis to drum mounting axis: 235 mm.

Distance between bearings (±1 mm): 75 mm.

Pulley mount: М12.

Mounting to drum: 3 holes with М6 thread.

Manufacturer: EBI.

Compatible Brand : Atlantic, Hyundai, Sharp, Vestel, Vestfrost

Manufacturer : EBI

Brands for customs : EBI

Type of spare part : Cross and support units

The height of the sleeve under the stuffing box, mm (±1 mm) : 18.2

The diameter of the sleeve under the stuffing box, mm (±0,3 mm) : 30.1

Bearing seat diameter 1, mm (±0.3 mm) : 17

Bearing seat diameter 2, mm (±0.3 mm) : 25

Shaft length, mm (±2 mm) : 123

Mounting to drum : М6

Pulley fastening : M12

Manufacturer for customs : EBI

Distance between bearings, mm (±1 mm) : 75

Distance from the axis of the shaft to the axis of the drum attac : 235
