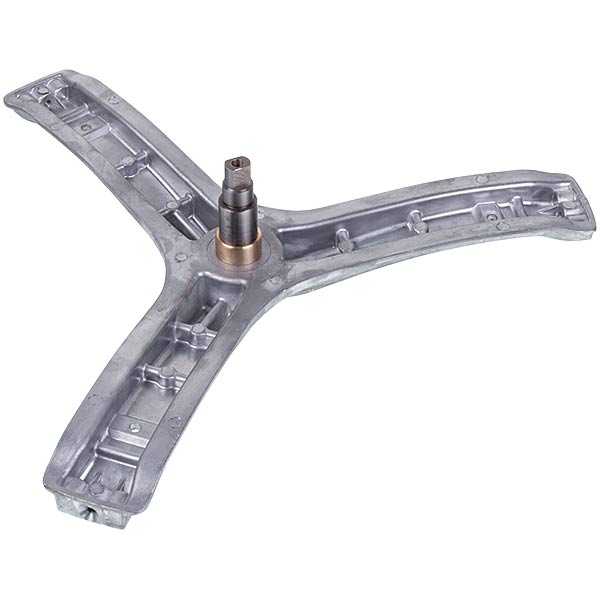

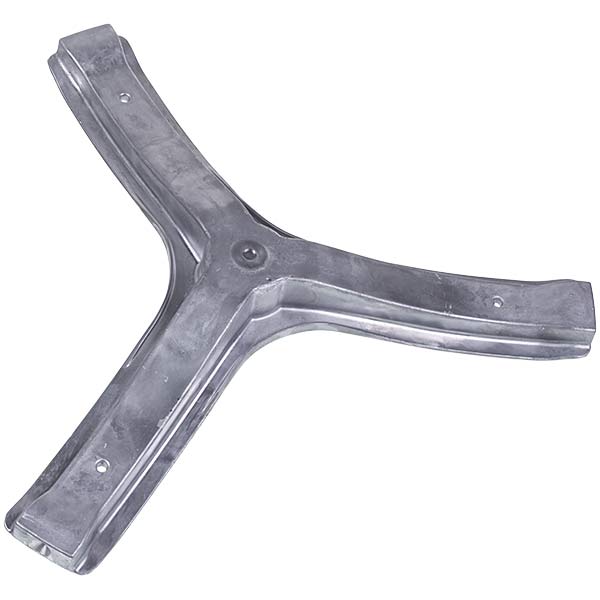

Washing Machine Drum Spider Compatible with Vestel COD.786 EBI L=72mm D=20/25/30.2mm

Washing Machine Drum Spider Vestel COD.786.

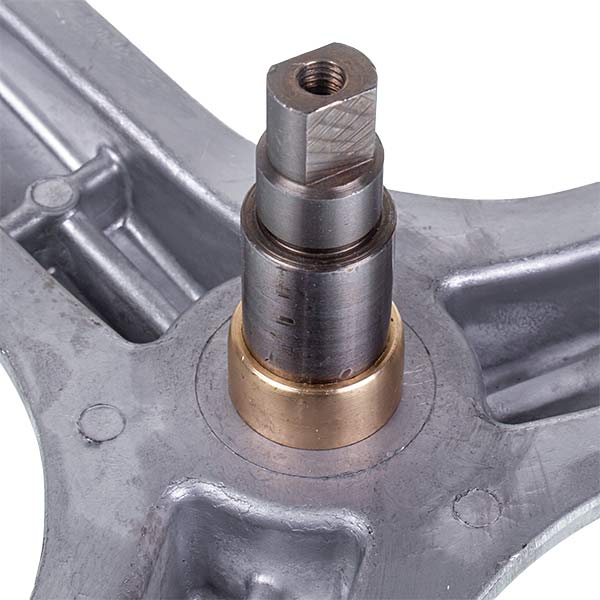

Bearing seat diameter 1 (±0.3 mm): 20 mm.

Bearing seat diameter 2 (±0.3 mm): 25 mm.

Bushing diameter (±0,3 mm): 30.2 mm.

Shaft length (±2 mm): 72 mm.

Bushing height (±1 mm): 14,6 mm.

Flat height (±1 mm): 15 mm.

Distance from shaft axis to drum mounting axis: 235.5 mm.

Distance between bearings (±1 mm): 28 mm.

Pulley mount: М8.

Mounting to drum: 3 holes with М6 thread.

Manufacturer: EBI.

Manufacturer : EBI

Brands for customs : EBI

Type of spare part : Cross and support units

The height of the sleeve under the stuffing box, mm (±1 mm) : 14.6

Flat cut height, mm (±1 mm) : 15

The diameter of the sleeve under the stuffing box, mm (±0,3 mm) : 30.2

Bearing seat diameter 1, mm (±0.3 mm) : 20

Bearing seat diameter 2, mm (±0.3 mm) : 25

Shaft length, mm (±2 mm) : 72

Mounting to drum : М6

Pulley fastening : М8

Manufacturer for customs : EBI

Distance between bearings, mm (±1 mm) : 28

Distance from the axis of the shaft to the axis of the drum attac : 235.5
