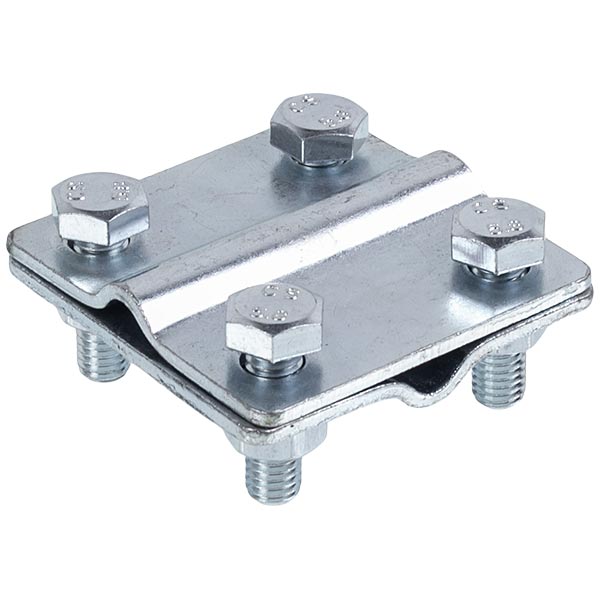

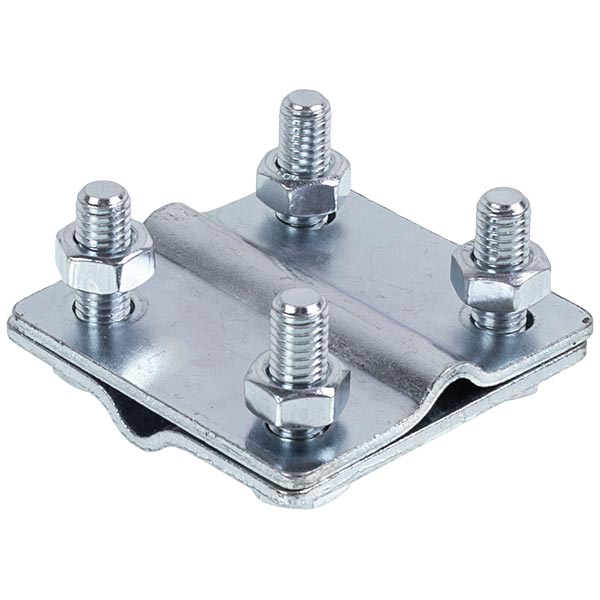

Wire/wire clamp D=8-10mm galvanized steel clamp 04/88.2 OC

Galvanized steel wire/wire clamp 04/88.2 OC.

It is designed for cross connection of lightning conductor wire with a diameter of 8-10 mm (galvanized or aluminum). It provides strong and stable fastening due to its special design and galvanized galvanization.

It consists of two plates with bends for diameters from 8 to 10 mm.

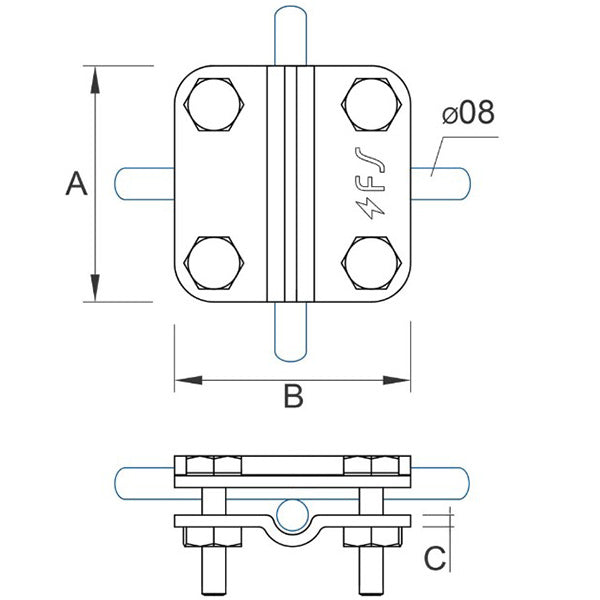

Plate thickness (C): 2 mm.

Plate dimensions (AxB): 60 x 60 mm.

Fixing: 4 bolts M8x25.

Material: galvanized steel for high corrosion resistance and durability.

Cross connections (A with B) are possible:

A) wire with diameter from 6 to 10 mm, strip 25x4 mm, strip 30x3 mm.

B) wire with diameter from 6 to 10 mm, strip 25x4 mm, strip 30x3 mm.

Compatible Brand : Універсальні

Type of spare part : Clamp

Diameter, mm : 8-10

Length, mm : 60

Fastening : bolts M8x25

Material : Galvanised steel

Coating : Galvanized

Thickness, mm : 2

Width, mm : 60
